25kv Heat Shrinkable Bus Bar Insulation Sleeving

Unit Price: USD 0.1800 - 0.2600 / Meter
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 500 Meter
Delivery Time: 18 Days

Basic Info

Model No.: MP-25KV

Type: Heat Shrink Busbar Insulation Sleeve

Material: PE

Application: High Voltage

Rated Voltage: 10kV

Tensile Strength: 14.3Mpa

Standard Colors: Red, Yellow, Green, Black

Certification: RoHS Compliant

Flammability: UL VW-1

Operating Temp: -55℃~125℃

Shrink Ratio: 2:1

Additional Info

Packaging: Standard&according to customer's required

Productivity: 1000000

Brand: KEYUACE

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 100000

Port: YanTian

Product Description

25kv Heat Shrinkable Bus Bar Insulation Sleeving

Product Description

25kv Heat Shrinkable Bus Bar Insulation Sleeving, Heat Shrink Tubing for Busbar a kind of continuous tube shape material made of radiation cross-linked polyolefin, carry excellent insulating performance.

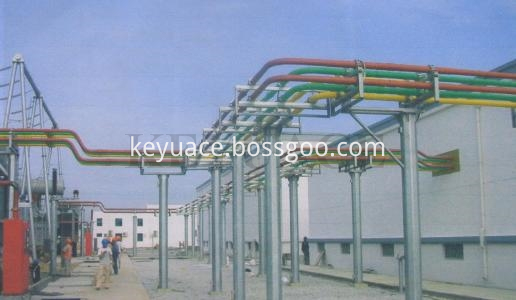

Typical applications for  Energy Heat Shrink Tubing, Busbar Heat Shrink Tubing include insulation of electrical bus bar rated up to 24KV or higher voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.

Large Energy Heat Shrink Tubing it restricts the hazardous substance in PBB, PBBD, PBBE and other heavy metal, and supplies high dielectric strength and voltage withstand performance. Bus Bar Insulation Sleeving it prevents bus-bar from chemical corrosion effected by strong acid, alkali, salt etc.


Busbar Heat Shrink Tubing images:

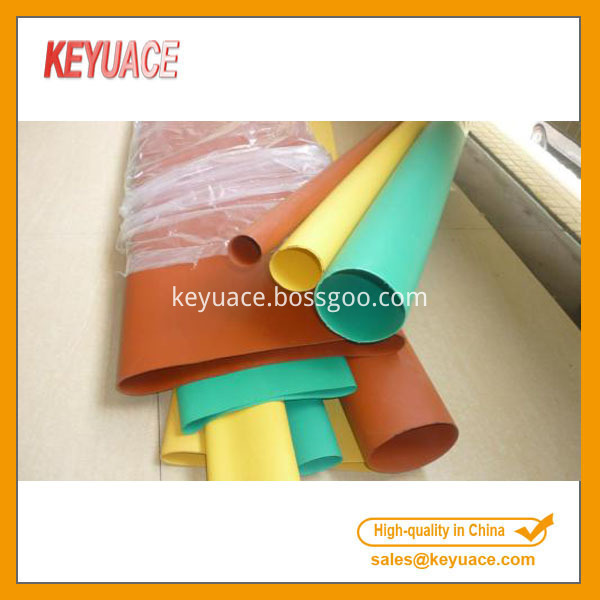

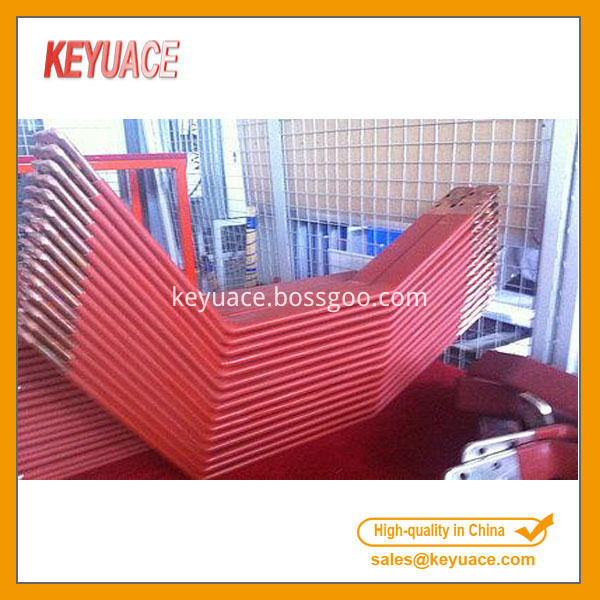

 Bus Bar Heat Shrinkable SleevesBus Bar Protection Thick Heat Shrinkable Sleeve

Features & Benefits:

with superior insulated and chemical properties.

meets:GB/T 1059-2007
Shrink ratio:2:1 (1 kV, 35 kV, 10 kV busbar )
Tracking resistant, low smoke emitting, high strength, flexible, flame retardant,resistance to flame and corrosion.
Min. shrink temperature:≥84°C
Min. full recovery temperature:≥120°C
Continuous operating temperature:-55 degrees C~125 degrees C
RoHS compliant 1KV Busbar heat shrinkable electrical tubes
Standard colors:red, yellow, green and other colors available on your request


Up to standard: Approvals

Product Properties

Product Property

Performance requirements

Test Date

Cold Bending flexibility

-30℃×4H

No cracking

Tensile strength

ASTM D  2671

14.3Mpa

Tensile strength after heat aging

ASTM D 2671 / 158℃, 168 hrs (7 days)

14.0 MPa

Max. Elongation

ASTM D 2671

450%

Elongation after heat aging

ASTM D 2671/158℃, 168 hrs (7 days)

470%

Low temperature flexibility

ASTM D 2671,

PASS

Volume resistance

IEC 93

1014Ω.cm

withstand voltage

UL224


2500V.60sec
no breakdown


Flammability

UL224

VW-1

Product Dimensions

Single wall heat shrink tubing


Application:

busbar tube for application

Bus Bar Heat Shrinkable Sleeves


Part Number

Basbar width(MM)

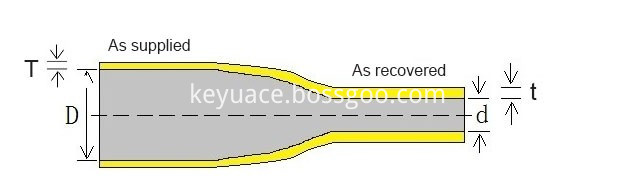

As supplied(MM))

After recovered(MM)

Standard length (m/roll)





Inner     diameter (D)

Wall thickness (T)

Inner

diameter (d)

Wall

thickness  (t)

25

MP-10KV 15/7.5

15/12

≥15

1.0±0.30

≤6.0

2.5±0.20

25

MP-10KV 20/10

20/15

≥20

1.0±0.30

≤8.0

2.5±0.20

25

MP-10KV 25/12.5

25/18

≥25

1.0±0.30

≤10.0

2.5±0.20

25

MP-10KV 30/15

30/20

≥30

1.0±0.30

≤12.0

2.5±0.20

25

MP-10KV 40/20

40/30

≥40

1.2±0.30

≤16.0

2.8±0.30

25

MP-10KV 50/25

50/35

≥50

1.2±0.30

≤20.0

2.8±0.30

25

MP-10KV 60/30

60/45

≥60

1.2±0.30

≤24.0

2.8±0.30

25

MP-10KV 65/32.5

65/45

≥65

1.2±0.30

≤26.0

2.8±0.30

25

MP-10KV 70/35

70/50

≥70

1.2±0.30

≤28.0

2.8±0.30

25

MP-10KV 75/37.5

75/50

≥75

1.2±0.30

≤30.0

2.8±0.30

25

MP-10KV 80/40

80/55

≥80

1.2±0.30

≤32.0

2.8±0.30

25

MP-10KV 85/42.5

80/65

≥85

1.2±0.30

≤34.0

2.8±0.30

25

MP-10KV 100/50

100/75

≥100

1.2±0.30

≤40.0

2.8±0.30

25

MP-10KV 120/60

120/85

≥120

1.2±0.30

≤48.0

2.8±0.30

25

MP-10KV 150/85

150/105

≥150
