High Temperature Flexible Polyimide Film Tubing

Unit Price: USD 1.5300 - 2.3500 / Meter
Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1000 Meter
Delivery Time: 18 Days

Basic Info

Model No.: KPT

Type: High Temperature Polyimide Tube

Material: Polyimede

Application: High Temperature

Rated Voltage: 600V

Tensile Strength: High MPA

Use Temperature: -35~180℃

Wallthickness: 0.0254mm~0.76mm

Length: 1.57mm~1219mm

Inner Diamater: 0.03mm~50.8mm

Heat Shrinkage: Non-shrink

Additional Info

Packaging: Standard&according to customer's required

Productivity: 1000000

Brand: KEYUACE

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 100000

Port: YanTian,Shenzhen

Product Description

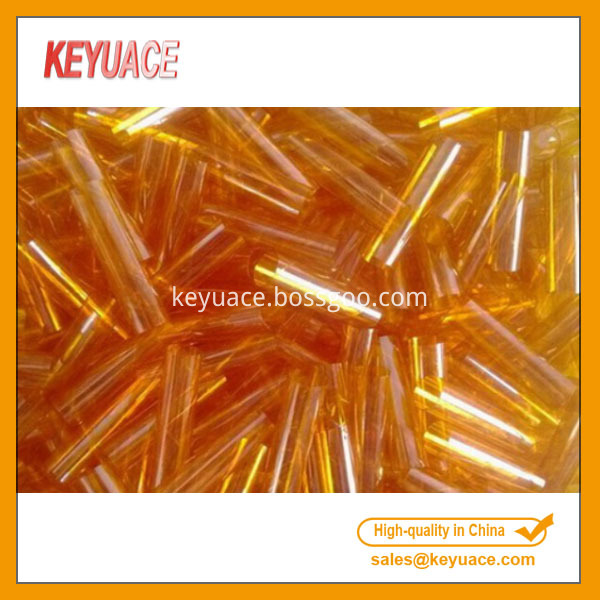

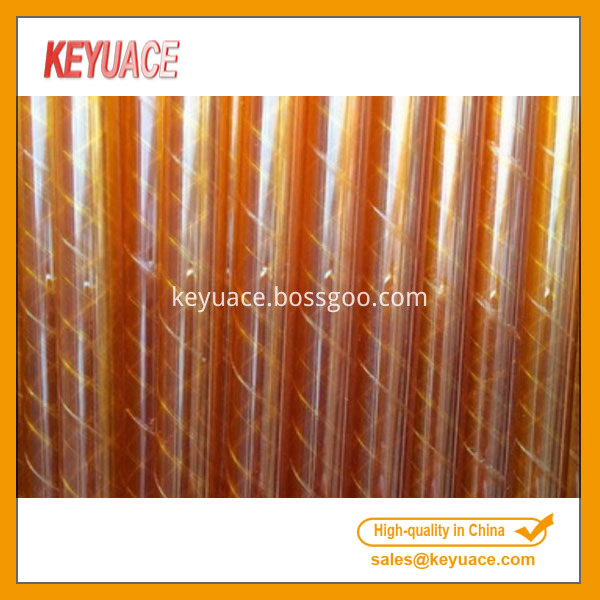

High Temperature Flexible Polyimide Film Tubing


Product Description

High Temperature Flexible Polyimide Film Tubing (kapton tubing), has good mechanical and useful performance at low and high temperature, Polyimide Film Tubing can keep the dielectric strength and size stablity at low and high temperature environment.

Flexible Polyimide Film Tubing (Insulating Tubing) it`s suitable for F, H Level application and -35~180 degrees C high temperature environment.

Polyimide Insulating Tubing it is suited to applications where an ultra-thin walled electrically insulating tube is required to perform at high temperatures.

Application:
1, space technology, F,H level electric machine, electrical insulation, PTC heater, heat protector Battery splice.
2, FPC (Flexible printing circuit board), PTC electrothermal film, TAB (Pressure sensitive adhesive tape base materials), spaceflight, aviation.
3, Computer, electromagnet wire, transfer, temperature sensor, temperature controller.
4, Motor, audio, mobile phone, computer,.
5, Smelting, mining, electronic component industries, automobile, traffic, aotmic power industries, and other electronic enterprise.

Exceptional dielectric strength and performance at high temperatures.
 Multilayered precision-wound protective tube made from DuPont™ Kapton® fi lm. Huapeng Non-Shrink Tube is ultra-stable and maintains its dielectric strength at high temperatures.

Huapeng Non-Shrink Tube is suited to a wide range of protective wire windings in applications, from defence.

More features
- UL approved DuPont™ Kapton® fi lm construction maintains high dielectric strength (25 μm thickness 276V/μm) D and dimensional stability at high and low temperatures (<2% expansion at 95% humidity)
- Wall thicknesses available from 0.028mm- Internal diameters available from 1.60mm
- Different construction variants supplied to match application requirements, using 0.012, 0.025, 0.050 and 0.125mm fi lm
- Maintains dielectric strength when exposed to radiation
