Heat Shrinkable Solder Tin Terminal With Shielding Wire

Unit Price: USD 0.0300 - 0.0400 / Piece/Pieces
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 5000 Piece/Pieces
Delivery Time: 18 Days

Basic Info

Model No.: HSCT-P

Application: Power

Shrink Ratio: 2:1

Operating Tempature: -55℃~150℃

Min. Shrink Temp: 80℃

Material: 99.7% Purple Copper

Surface: Tin Plated

Connection Mode: European

Quality: Grade A

Type: Solder Tin Terminal With Shielding Wire

Certification: ROHS

Additional Info

Packaging: Standard&according to customer's required

Productivity: 1000000

Brand: KEYUACE

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000

Port: YanTian,Shenzhen

Product Description

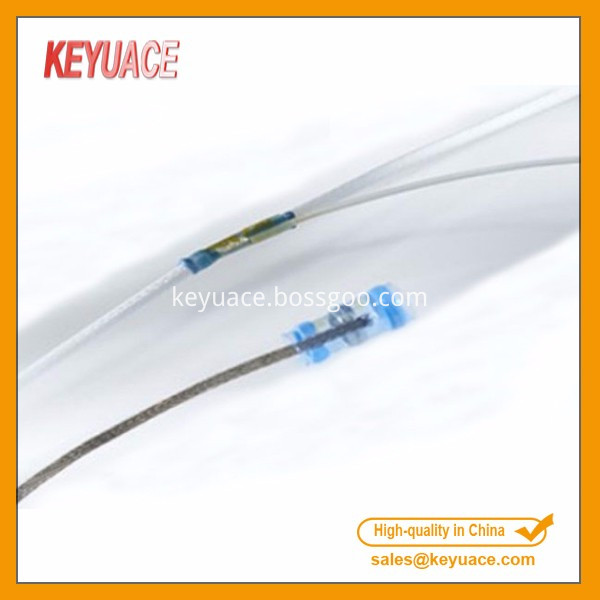

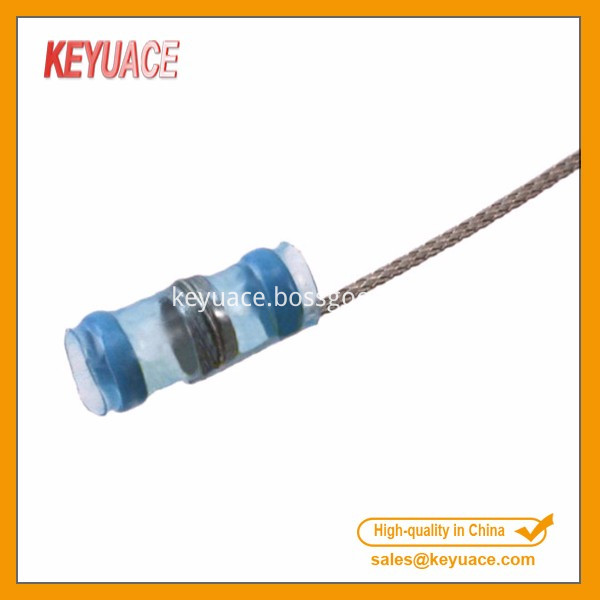

Heat Shrinkable Solder Tin Terminal With Shielding Wire


Product Description

Solder and Heat Shrink Connectors, Heat Shrink Solder Terminals, Suitable for shielding earth terminal installation, Heat Shrink Waterproof Wire Connectors, Bulk Heat Shrink Connectors the outer tube materials performance is very high, embedded type lead wire make it easy to install in the construction process.

Product feature:
1, Heat Shrink Wire Crimp Connectors, Heat Shrink Bullet Connectors with shrink ratio:2:1
2, Insulated Heat Shrink Butt Connectors, Heat Shrink Wire Connector Kit Resistance to friction, excellent chemical corrosion resisting performance.
3, According with RoHs

Operation specification:
1, Min. Shrink temp.: 80 degrees C
2, Working temperature: -55 degrees C~125 degrees C
3, Soldering tin start melt temperature:138 degrees C
4, Soldering tin complete melt temperature:160 degrees C

Up to standard: Approvals
 According with environmental protection


Product Description

Heat Shrink Waterproof Wire ConnectorsSolder And Heat Shrink Connectors


Working temperature

-55℃~+125℃

Final shrink temperature

>160℃

Dielectric strength

1kv

Waterproof level

IP 67





Product Dimensions

Part number

Heat shrink tube (mm)

Soldering tin ring
(mm)

Shielding wire
(mm)

I.D.

L

I.d.

H

O.D.

L2

HSCP 1.7

1.7±0.1

26±0.5

1.7±0.1

2.0±0.1

1.0

100

 HSCP 1.95

1.95±0.1

26±0.5

1.95±0.1

2.0±0.1

1.0

100

HSCP 2.7

2.7±0.2

42±0.5

2.7±0.2

2.5±0.1

1.0

100

HSCP 4.5

4.5±0.2

42±0.5

4.5±0.2

2.5±0.1

1.5

150

HSCP 6.0

6.0±0.2

42±0.5

6.0±0.2

3.5±0.1

1.5

150

HSCP 7.0

7.0±0.5

42±0.5

7.0±0.5

3.5±0.1

1.5

150

HSCP 8.7

8.7±0.5

42±0.5

8.7±0.5

3.5±0.1

1.5

150

HSCP 9.7

9.7±0.5

42±0.5

9.7±0.5

3.5±0.1

1.5

150

 HSCP 10.7

10.7±0.5

42±0.5

10.7±0.5

3.5±0.1

1.5

150

 HSCP 13.0

13.0±0.0.5

42±0.5

13±0.0.5

4.5±0.1

1.5

150





















Our Services

Excellent quality and reasonable price to provide.

- We do quotation within 2 days and welcome your any inquiry at any time.

- More details pelease call or email to us directly!

1.We are already have 3 factories located in SZ, abound of material and market resources, high quality, competitive price, best service.

2.As a professional manufacturer of Insulation Heat Shrinkable Terminal Sleeve for more than 10 years. our products are exported to USA, Europe country, Middle East , South America and so on.


3.Workflow: your idea →we make sample and send to you →you confirm and order →deposit →product →pay balance →shipment →After service

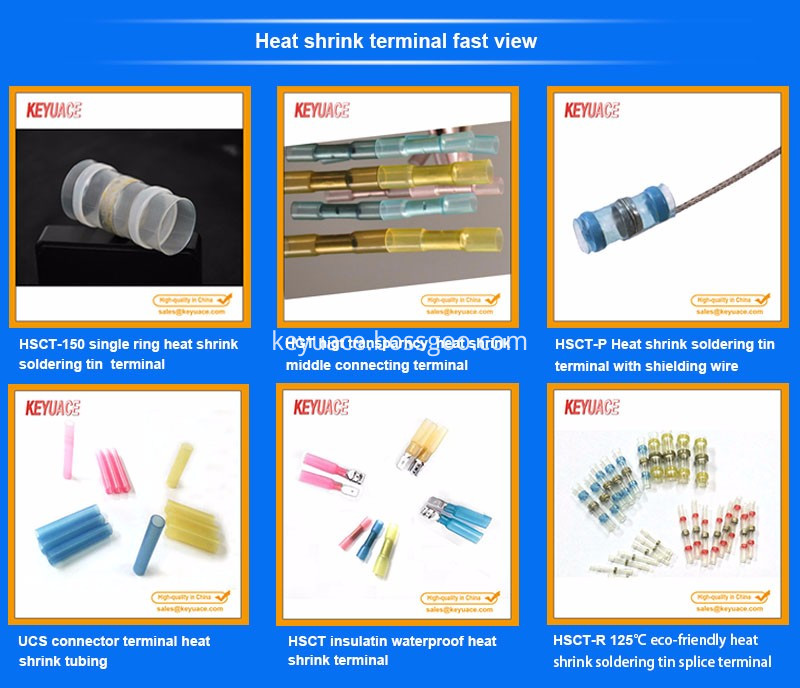

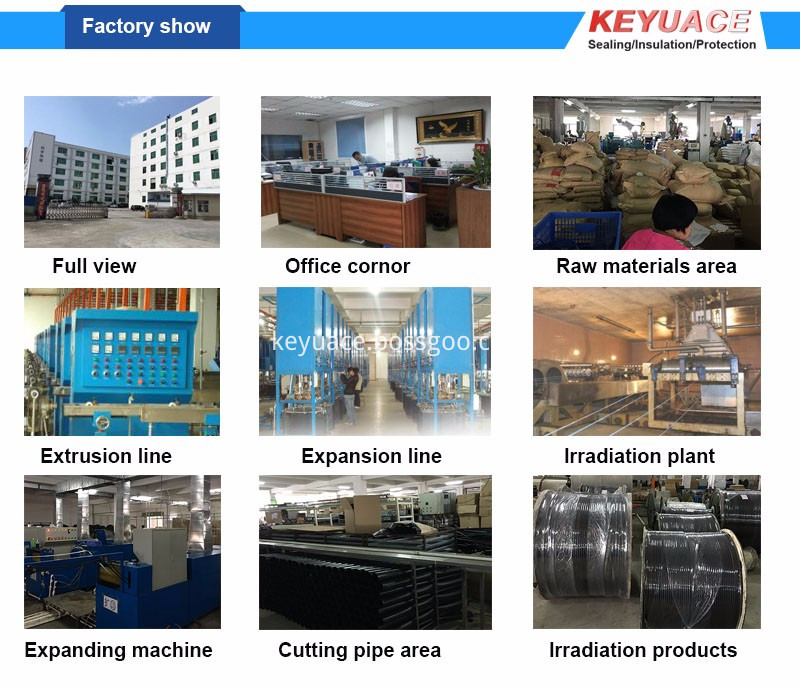

Electrical Terminals Waterproof Seal Assorted Wire Crimp Heat Shrink Butt Connectors KitCertificationFactory ShowCompany Logistics
