Single Core Optic Fiber Heat shrink Tube

Unit Price: USD 0.0100 / Piece/Pieces
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 10000 Piece/Pieces
Delivery Time: 18 Days

Basic Info

Model No.: OFPT

Additional Info

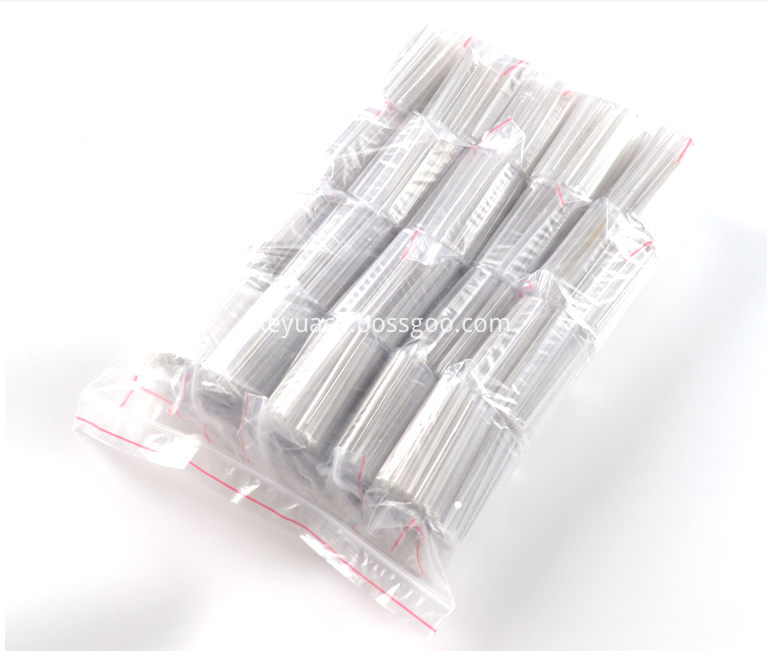

Packaging: Standard&according to customer's required

Productivity: 1000000


Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000

Port: YanTian,Shenzhen

Product Description

Single Core Optic Fiber Heat shrink Tube

Product Description

OFPT Single Core Optic Fiber Heat shrink Tube / Thin Wall Clear Heat Shrink Tubing is made of transparent heat shrink tube, transparent heat melting tubing and stainless steel rod. It applies to coupler, adapter, optical fiber jumper, etc.

Optical Fusion Splice Protections 40mm length for Single Fiber or Ribbon Fiber

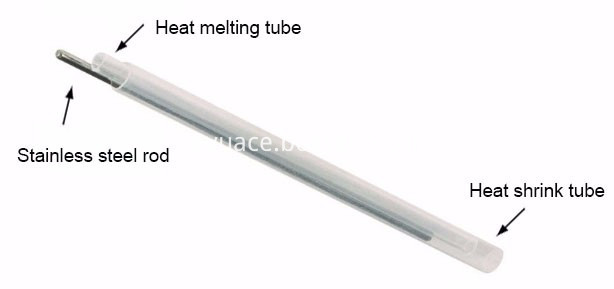

Fiber Heat Shrink Tube, consist of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Fiber Optic Heat Shrink Sleeve it easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. Fiber Optical Heat Shrinkable Tubing sealing structure make the splice free from influence of temperature and humidity in special environment.
Working Temperature :-45 degrees C~100 degrees C/-45 degrees C~135 degrees C
Shrinking temperature range: 120 degrees C
Standard color: Clear
Other 12 colors available: White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple
Available with Single Fiber(mm) and Ribbon Fiber (mm)

Product Description

Properties Test mothod Typical date
Tensile strength ASTM D2671 ≥18MPa
Elongation at break ASTM D2671 700%
Density ISO R1183D 0.94g/cm3
Dielectric strength IEC 243 20 KV/mm
Dielectric constant IEC 243 2.5max
Length change ratio ASTM D2671 0±5%

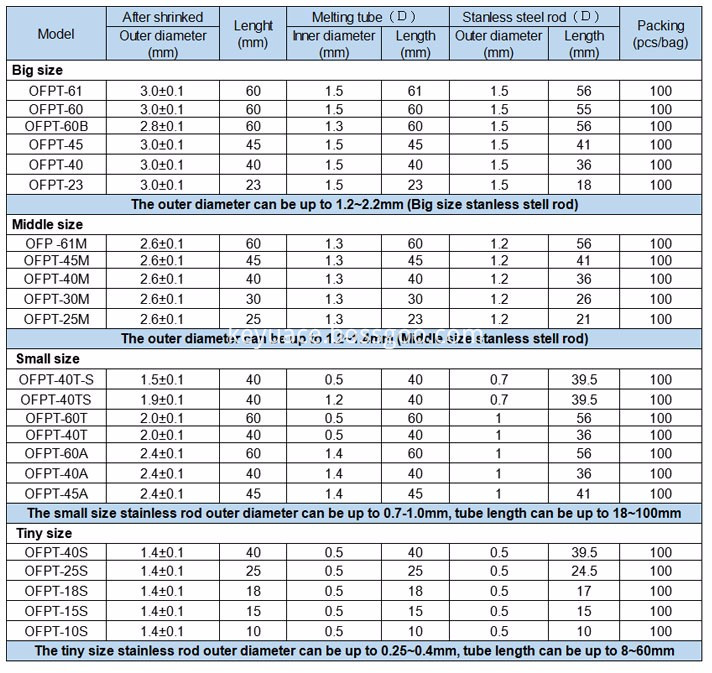

Product Dimensions

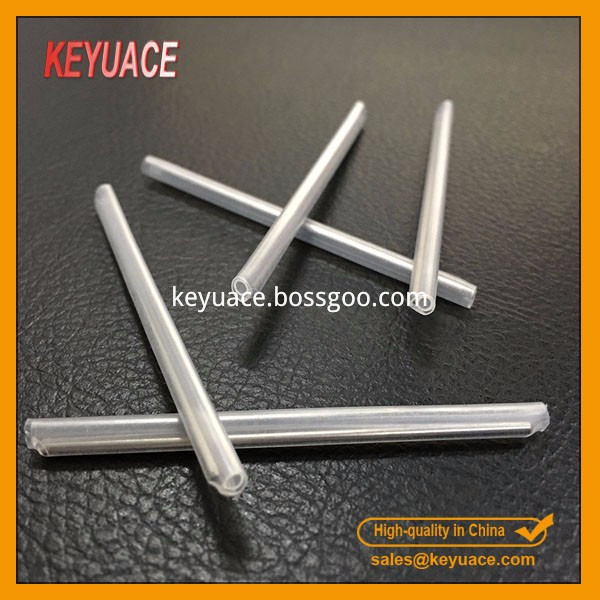

Fiber Optic Heat Shrink Sleeve

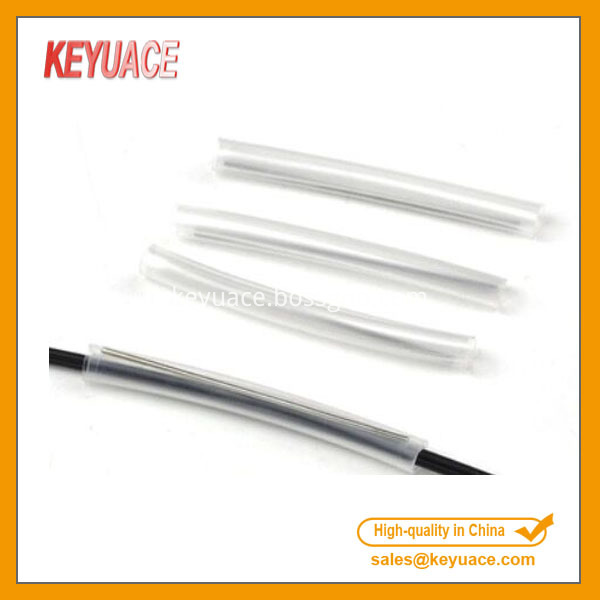

Fiber Optic Heat Shrink Sleeve picture

Fiber Optic Heat Shrink Tube with product dimension

Fiber Optic Heat Shrink Tube with product dimensions

Relative Splice Protection Sleeve Below:

Thin Wall Clear Heat Shrink TubingFiber Optic Heat Shrink TubeFiber Optic Heat Shrink Sleeve
