Automotive Copper Wire Electrical Butt Connectors

Unit Price: USD 0.0610 - 0.0630 / Piece/Pieces
Payment Type: T/T
Incoterm: FOB,EXW,FCA
Min. Order: 10000 Piece/Pieces
Delivery Time: 18 Days

Basic Info

Model No.: HSCT

Additional Info

Packaging: Standard&according to customer's required

Productivity: 1000000


Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000

Certificate: iso9002

Port: YanTian,Shenzhen

Product Description

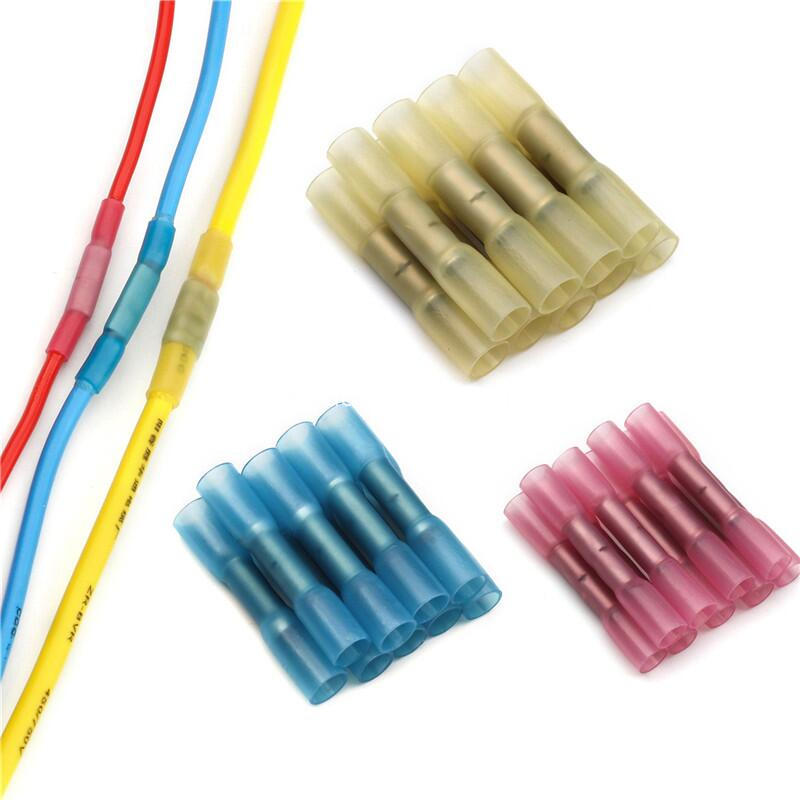

Automotive Copper Wire Electrical Butt Connectors / Insulated waterproof Butt joints / Insulated Heat shrinkable Butt connectors terminals

Product Description

Heat Shrink Connectors Terminals, Heat Shrink Joint is made of polyolefin compounded with hot melt adhesive, Heat Shrinkable Butt Connectors it has excellent insulation protection, waterproof and anti-corrosion performance.

Heat Shrink Butt Connectors The middle copper tube is high pure purple copper tube with superior conductivity.

Heat Shrink Butt Connector Terminals , Insulated waterproof Butt joint End it has the advantage of good durablity, Wire Connectors Electrical Crimp Terminals it easy operation and low installation cost compared with conventional connector.

Copper Electrical Heat Shrink Wire TerminalsHeat Shrink Crimp Terminal

The middle copper tube is high pure purple Suitable size for: 24 universal sizes

Used Sizes of Faucet Washers In 24 Different

Materials (PE)

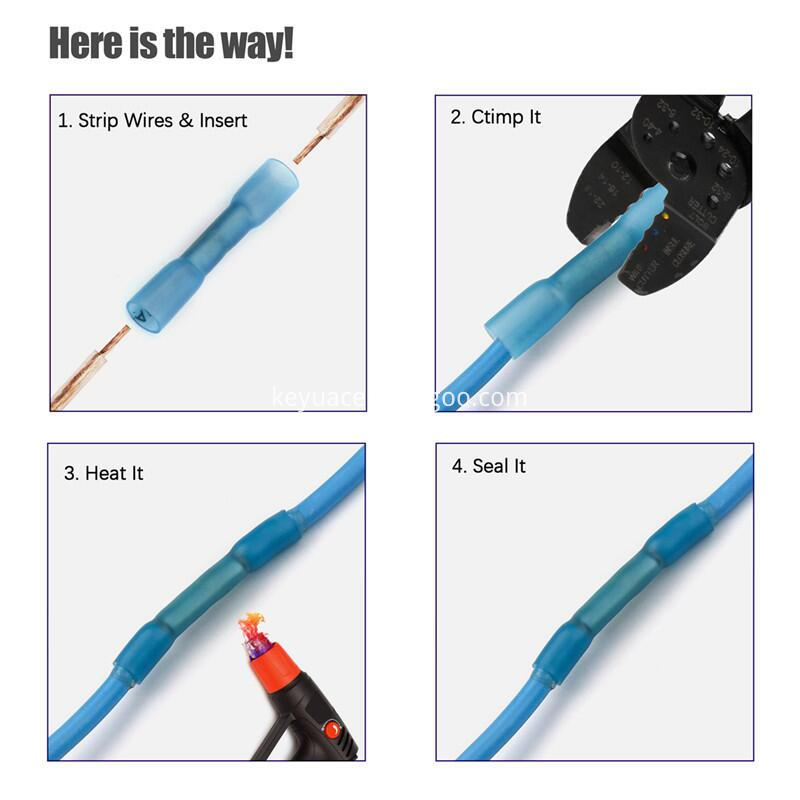

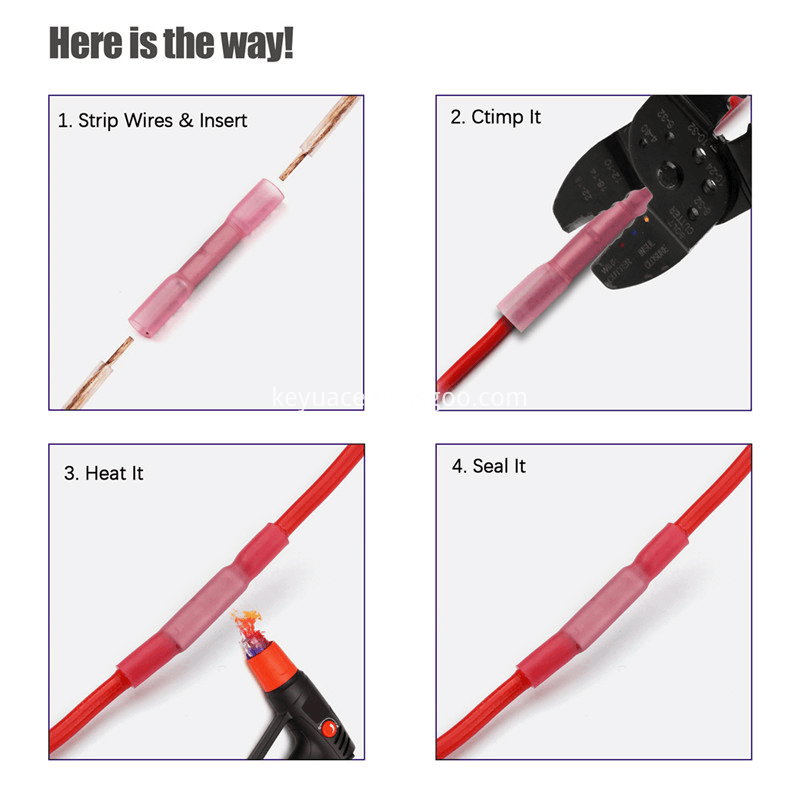

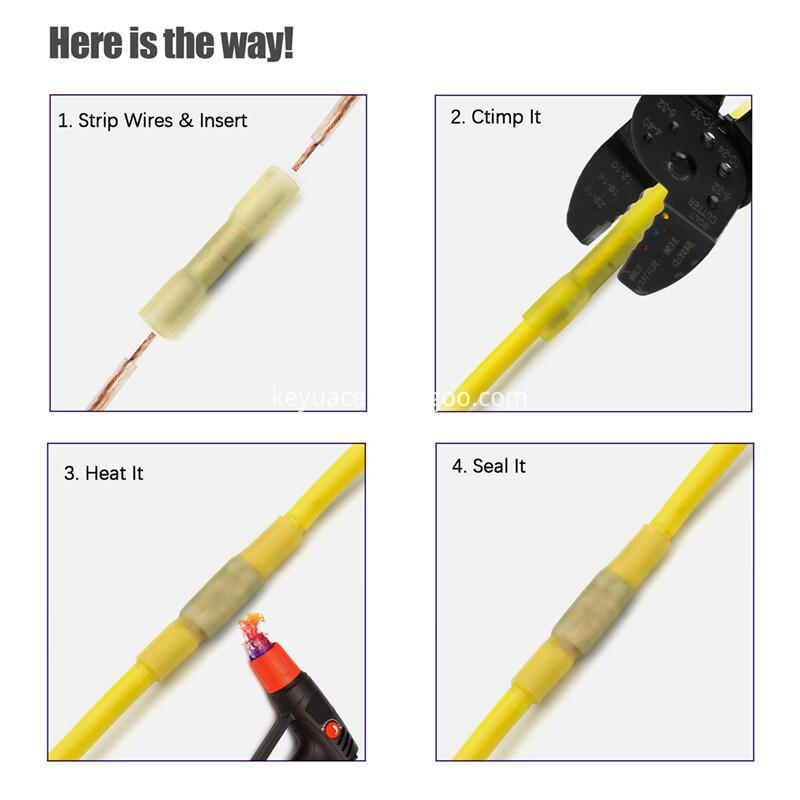

For best results use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal

WATERPROOF - Insulation tubing has unique dual-walled design: polyolefin tubing on the outside and PA hot melt adhesive inside. When heat is applied, polyolefin tubing reduces in size and adhesive flows inside the insulation. Dual walled tubing ensures waterproof seal and prevents wire corrosion

EXCELLENT WIRE CONTACT - copper barrel provides increased current flow, and ensures less voltage drop, preventing wiring failures and reducing equipment downtime. Thick barrel ensures strong crimp every time - your wire will never slip out of the connector

All packed in a plastic case for easy access and carry.

Product feature:
1, Shrink ratio: 3:1
2,Color: Red, blue, yellow
3, PA hot melt adhesive has superior waterproof performance.
4, Extension performance is superior, resistance to mechanical damage.
5, Good electrical conductivity.
6, High elasticity, tube is not easy to deformation.
Operating indicators:
Initial temperature: 80 degrees C
Min. Shrink temp.: 130 degrees C
Working temperature: 55 degrees C ~ 125  degrees C
Up to standard: Approvals
According with UL224, ROHS

Product application:
1, Generally applied to electric wire, wire harness, cables and electric connector for protection.
2, Applied to rough environment for strengthen the fixed and anti-shock function.

Heat Shrink TerminalHeat Shrink Terminal ConnectorInsulated Electrical Wire ConnectorsSealCrimpInsulated Electrical Wire Connector

Product Description

Working temperature

-55 degrees C~+125 degrees C

Final shrink temperature

>160 degrees C

Dielectric strength


Waterproof level

IP 67

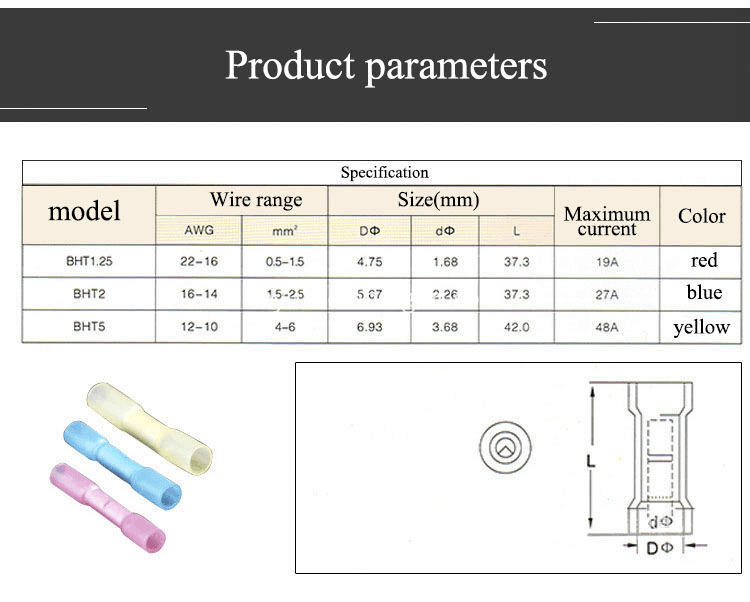

Product Dimensions

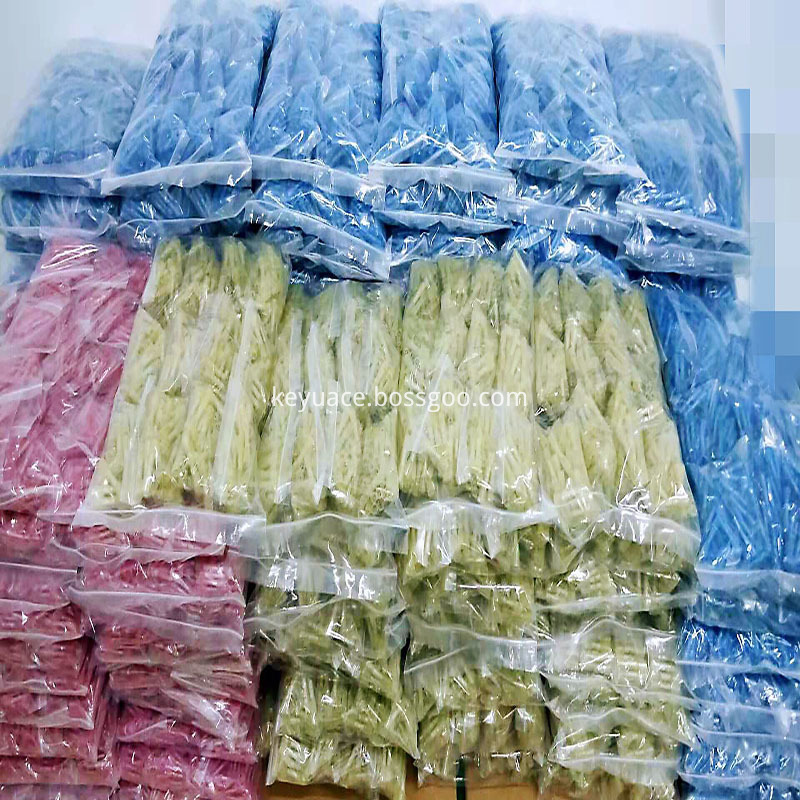

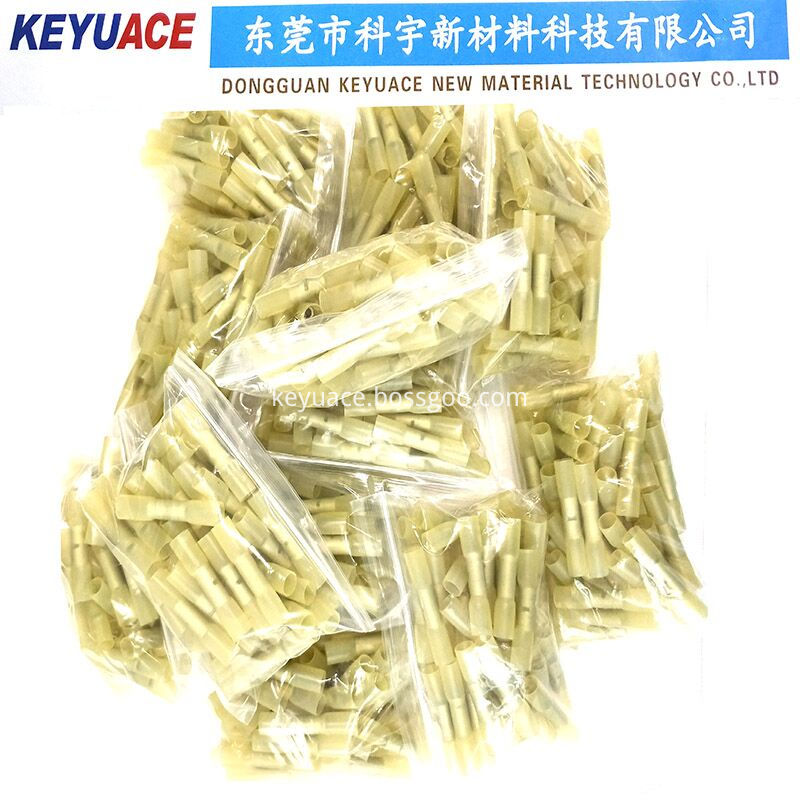

Packing & Shipping:


INSULATED Waterproof connectors

Our Services
Excellent quality and reasonable price to provide.

- We do quotation within 2 days and welcome your any inquiry at any time.

- More details pelease call or email to us directly!

1.We are already have 3 factories located in SZ, abound of material and market resources, high quality, competitive price, best service.

2.As a professional manufacturer of Insulation Heat Shrinkable Terminal Sleeve for more than 10 years. our products are exported to USA, Europe country, Middle East , South America and so on.

3.Workflow: your idea →we make sample and send to you →you confirm and order →deposit →product →pay balance →shipment →After service
