Blue Battery Pack PVC Heat Shrink Tube

Unit Price: USD 0.0150 - 0.0260 / Meter
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1000 Meter
Delivery Time: 18 Days

Basic Info

Model No.: KY-PVC

Type: Insulation Sleeving

Material: PVC

Application: High Temperature, Aluminum Elec

Rated Voltage: 15KV

Tensile Strength: 107N/m2

Size: 24-450mm Flat Width

Wall Thickness: 0.1mm (before Shrinkage)

Shrink Temp: 80°C

Length: 74mm

Standard Colors: Black,white, Red, Blue, Yellow, Green

Additional Info

Packaging: Standard&according to customer's required

Productivity: 1000000

Brand: KEYUACE

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 100000

Port: YanTian,Shenzhen

Product Description

Blue Battery Pack PVC Heat Shrink Tube


Product Description

PVC Heat Shrink Tubing Clear is made by PVC material, good electric insulation. PVC Heat Shrinkable Sleeves it applies to electronic components, packing materials, aluminum electrolytic capacitor, inductance, etc.

PVC Shrink Tubing also widely used in  lighting, LED pin bottle combination packaging, beautifying coverings play, insulation, moisture or corrosion protection, and the role of dust.
PVC/PET Heat Shrinkable TubingPVC Shrinkable Tube, you can use it to Batteries by cutting it smaller in the desired length with the help of scissors.

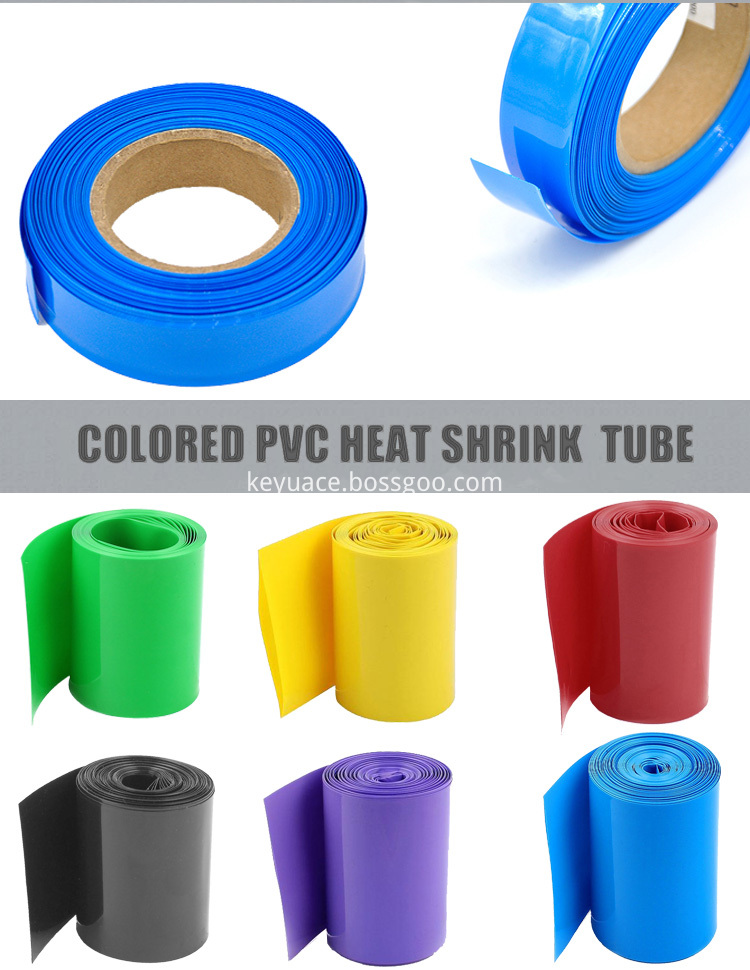

PVC Heat Shrink Tubing Pictures:

PVC Heat Shrink Tubing

 PVC Shrink Tubing

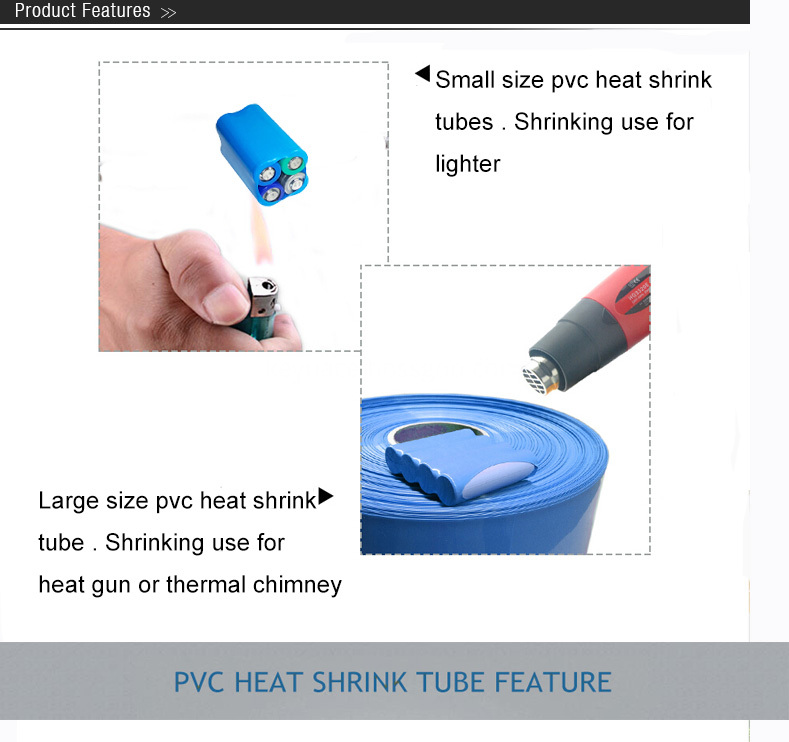

Features and benefits:


1, Low-temperature shrink, superior electric insulation, fire resistance
2, Two kinds of products according to temperature: 90 degrees C , 105 degrees C

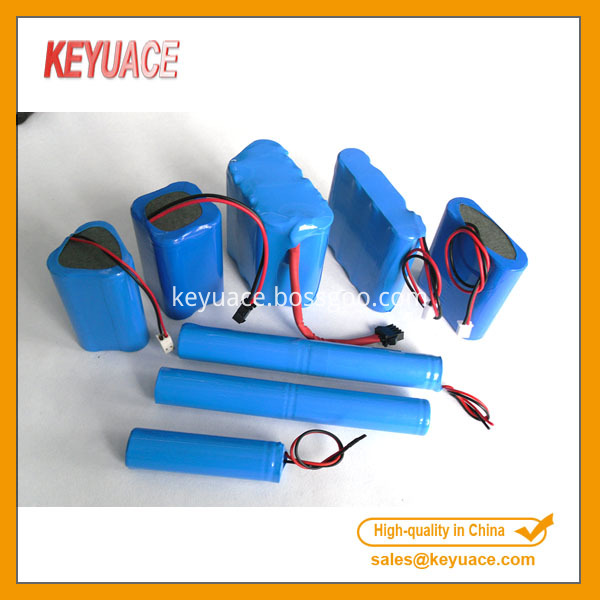

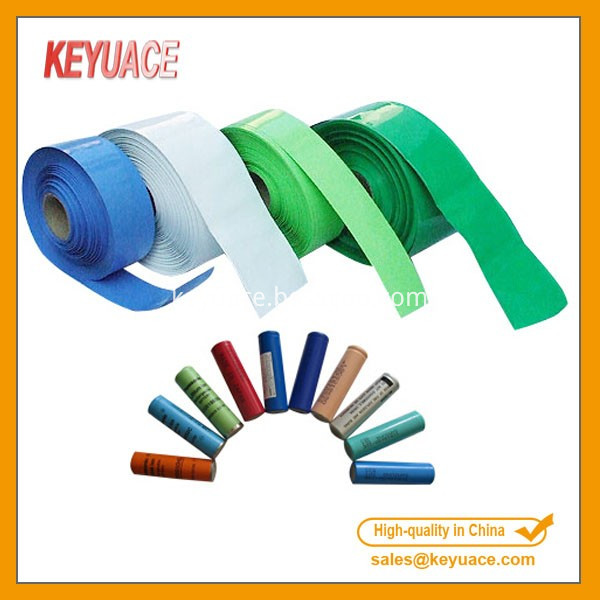

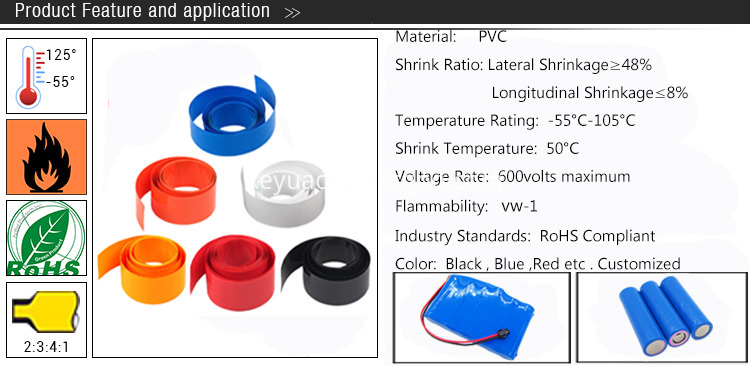

PVC Heat Shrink TubingPVC Shrink Tubing for ApplicationPVC Shrink Tubing

Product Description

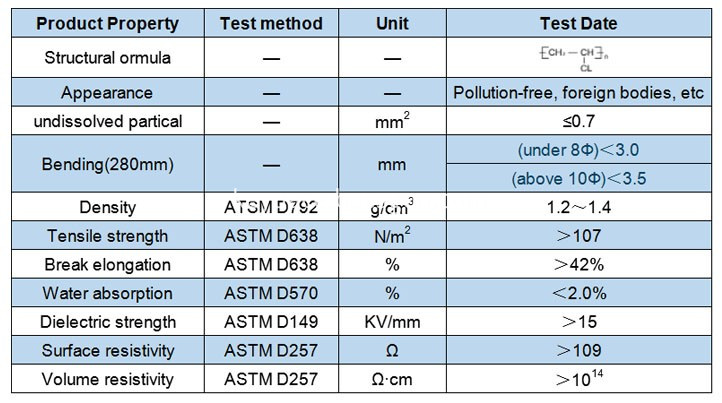

pvc heat shrink sleeves with product property


Product Dimensions


105 degrees C PVC heat shrink tubing,   Model:KY-PVC 105 degrees C

Size(mm)

Lay flat(mm)

Wall thickness
(mm)

Horizontal shrink ratio(%)

Vertical Shrinkage ratio(%)

High temperature vertical shrinkage ratio(%)
Hot Oven(180±2)℃×15

Φ3

5.5±0.2

0.085±0.01

48±4

7±2

14±3

Φ4

7.3±0.2

0.09±0.01

``

6±2

``

Φ 5

9.2±0.2

``

``

``

``

Φ 6

10.6±0.2

``

``

``

``

Φ6.3

11.1±0.2

``

``

``

``

Φ8

14.1±0.2

0.095±0.01

``

``

``

Φ9

15.5±0.2

``

``

``

``

Φ10

17.1±0.2

0.10±0.01

``

``

``

Φ12

20.7±0.2

0.10±0.015

``

7±2

17±3

Φ12.5

21.6±0.2

``

``

``

``

Φ13

22.1±0.3

``

``

``

``

Φ14.5

24.6±0.3

``

``

``

``

Φ16

27.1±0.3

0.11±0.015

``

``

``

Φ18

30.1±0.3

``

``

``

``

Φ20

33.2±0.3

0.12±0.015

``

``

19±3

Φ22

36.3±0.3

``

``

``

``

Φ25

41.4±0.4

0.14±0.02

``

9.5±2

``

Φ30

50.0±0.6

``

``

``

``

Φ35

57.4±0.7

``

``

``

``

Φ40

66.2±1.0

``

``

``

``

Φ50

83.5±1.5

0.30±0.03

38±5

15±5

≤40.0

Φ63.5

106.0±1.5

``

``

``

``

Φ76

125.0±1.5

``

``

``

``

Φ89

145.0±1.5

``

``

``

``

Φ100

156.0±1.5

``

``

``

``



Colors: black,white, red, blue, yellow, green, transparent
Pointed size is available according to customers` request
