Heat Shrink Butt Wire Electrical Crimp Terminal Connector

Unit Price: USD 0.0300 - 0.0400 / Piece/Pieces
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 5000 Piece/Pieces
Delivery Time: 18 Days

Basic Info

Model No.: HSCT

Type: Adapter; Splice

Material: Solder Terminal

Application: Power

Thickness: 0.75mm-1.0mm

AWG22-AWG10: AWG22-AWG10

Packing: 100PCS/Bag(See Product Pac

Plating: Sn Plating

Colors: Red, Yellow, Blue,White

Operating Tempature: -55℃---125℃

Fully Recovey Temp: 138℃

Additional Info

Packaging: Standard&according to customer's required

Productivity: 1000000

Brand: KEYUACE

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000

Port: YanTian,Shenzhen

Product Description

Heat Shrink Butt Wire Electrical Crimp Terminal Connector


Product Description


Heat Shrink Wire Connector, Automobile Terminal, Marine Heat Shrink Electrical Connectors is made of polyolefin compounded with hot melt adhesive, it has excellent insulation protection, waterproof and anti-corrosion performance. Bulk Heat Shrink Connectors, Insulated Heat Shrink Butt Connectors The middle copper tube is high pure purple copper tube with superior conductivity.

Blue Heat Shrink Connectors, Heat Shrink Bullet Connectors it has the advantage of good durablity,  Heat Shrink Wire Crimp Connectors , Heat Shrink Solder Terminals easy operation and low installation cost compared with conventional connector.


Heat Shrink Wire Connector Kit, The middle copper tube is high pure purple Suitable size for: 24 universal sizes

Used Sizes of Faucet Washers In 24 Different

Materials (PE)

For best results use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal

WATERPROOF - Insulation tubing has unique dual-walled design: polyolefin tubing on the outside and hot melt adhesive inside. When heat is applied, polyolefin tubing reduces in size and adhesive flows inside the insulation. Dual walled tubing ensures waterproof seal and prevents wire corrosion

EXCELLENT WIRE CONTACT - copper barrel provides increased current flow, and ensures less voltage drop, preventing wiring failures and reducing equipment downtime. Thick barrel ensures strong crimp every time - your wire will never slip out of the connector

All packed in a plastic case for easy access and carry.


Product application:


1, Heat Shrink Wire Connector Kit Generally applied to electric wire, wire harness, cables and electric connector for protection.
2, Applied to rough environment for strengthen the fixed and anti-shock function.

Heat Shrink TerminalHeat Shrink Terminal Connector

Product feature:
1, Shrink ratio: 3:1
2,Color: Red, blue, yellow
3, PA hot melt adhesive has superior waterproof performance.
4, Extension performance is superior, resistance to mechanical damage.
5, Good electrical conductivity.
6, High elasticity, tube is not easy to deformation.

Operating indicators:
Initial temperature: 80 degrees C
Min. Shrink temp.: 130 degrees C
Working temperature: 55 degrees C ~ 125  degrees C

Up to standard: Approvals
According with UL224, ROHS

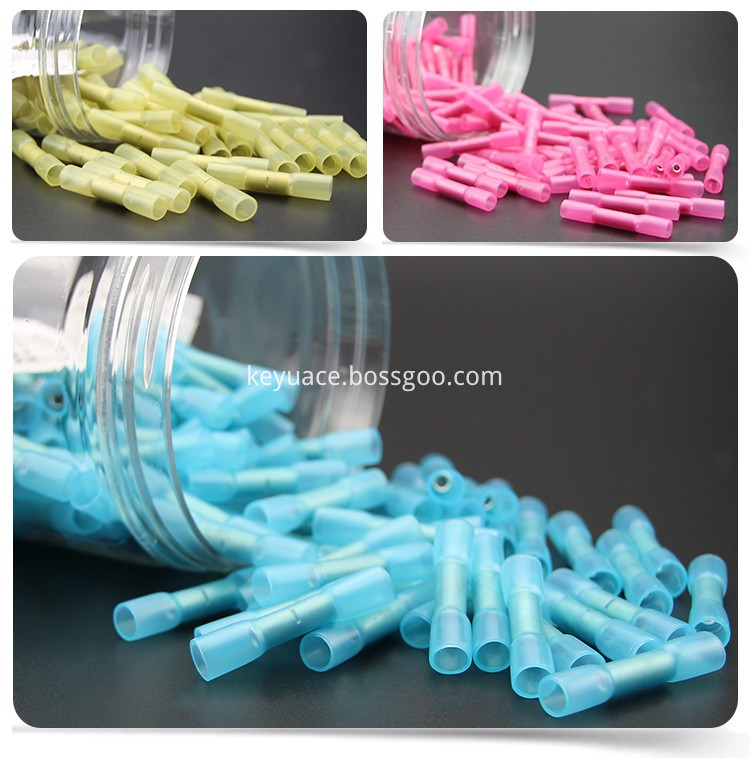

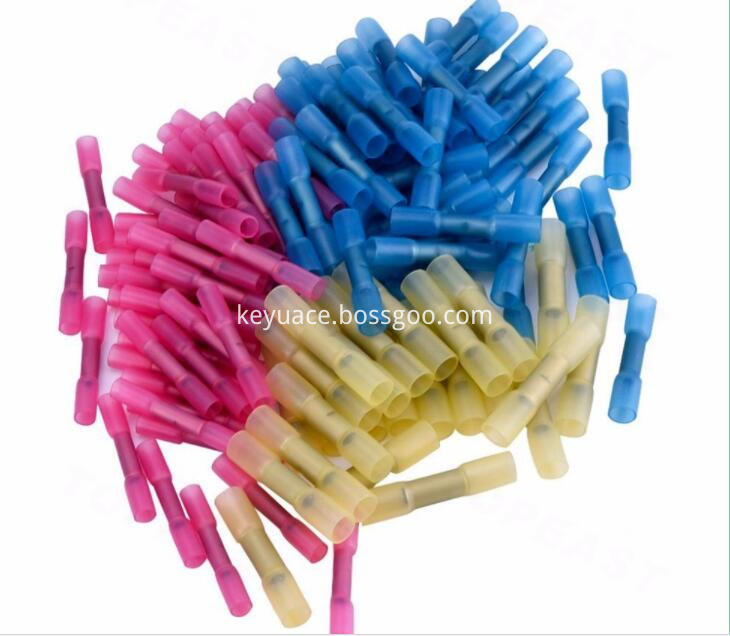

Detailed Images:

Heat Shrink ButtShrink connectorshow to use terminals

Product Description

Working temperature

-55 degrees C~+125 degrees C

Final shrink temperature

>160 degrees C

Dielectric strength

1kv

Waterproof level

IP 67

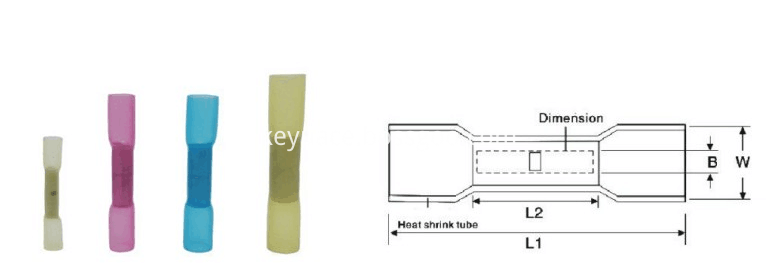

Product Dimensions


Heat Shrink Terminal Connector Kit Size

terminal
Waterproof Heat Shrink Connectors Kit Product Drawing
