Insulated Electrical Heat Shrinkable Butt Connectors

Unit Price: USD 0.0350 - 0.0460 / Piece/Pieces
Payment Type: T/T
Incoterm: FOB,EXW,FCA
Min. Order: 5000 Piece/Pieces
Delivery Time: 5 Days

Basic Info

Model No.: HSCT

Additional Info

Packaging: Standard&according to customer's required

Productivity: 1000000

Brand: KEYUACE

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 500000

Port: YanTian,Shenzhen

Product Description

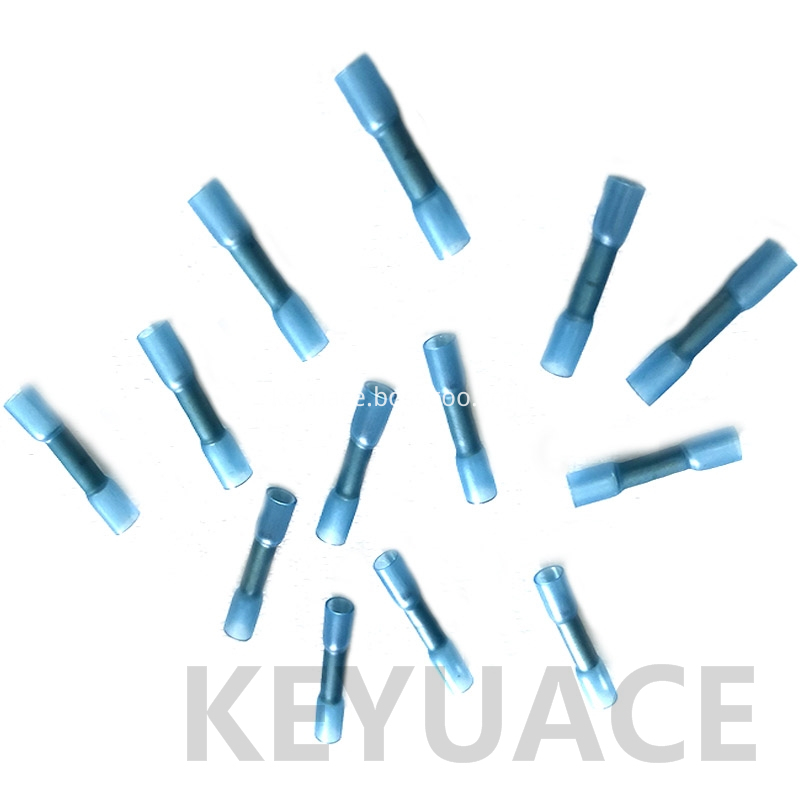

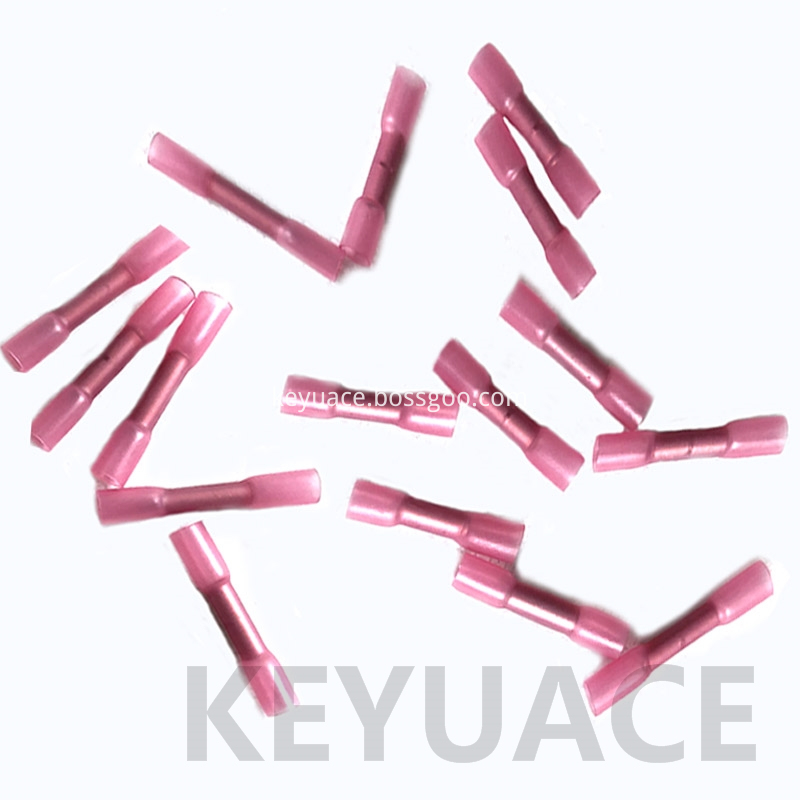

Insulated Electrical Heat Shrink Wire Connector


Product Description


Heat Shrink Wire Crimp Connectors, Heat Shrink Wire Connector Kit is made of polyolefin compounded with PA hot melt adhesive, Heat Shrink Butt Connectors it has excellent insulation protection, waterproof and anti-corrosion performance.

Butt Heat Shrinkable Connectors , Heat Shrinking Butt  Terminal The middle copper tube is high pure purple copper tube with superior conductivity.

Heat Shrink Butt Connectors Wire Terminal , Insulated Heat Shrinkable Butt Connectors it has the advantage of good durablity,   Wire Connectors Electrical Terminals it easy operation and low installation cost compared with conventional connector.


Wire Waterproof Middle TerminalsHeat Shrink Butt Connectors Terminals with Soldering SleeveHeat Shrink Crimp Terminal

The middle copper tube is high pure purple Suitable size for: 24 universal sizes

Used Sizes of Faucet Washers In 24 Different

Materials (PE)

For best results use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal

WATERPROOF - Insulation tubing has unique dual-walled design: polyolefin tubing on the outside and PA hot melt adhesive inside. When heat is applied, polyolefin tubing reduces in size and adhesive flows inside the insulation. Dual walled tubing ensures waterproof seal and prevents wire corrosion

EXCELLENT WIRE CONTACT - copper barrel provides increased current flow, and ensures less voltage drop, preventing wiring failures and reducing equipment downtime. Thick barrel ensures strong crimp every time - your wire will never slip out of the connector

All packed in a plastic case for easy access and carry.


Product feature:
1, Shrink ratio: 3:1
2, Color: Red, blue, yellow
3, PA hot melt adhesive has superior waterproof performance.
4, Extension performance is superior, resistance to mechanical damage.
5, Good electrical conductivity.
6, High elasticity, tube is not easy to deformation.

Operating indicators:
Initial temperature: 80 degrees C
Min. Shrink temp.: 130 degrees C
Working temperature: 55 degrees C ~ 125  degrees C

Up to standard: Approvals
According with UL224, ROHS


Product application:


1, Generally applied to electric wire, wire harness, cables and electric connector for protection.
2, Applied to rough environment for strengthen the fixed and anti-shock function.


Heat Shrink TerminalHeat Shrink Terminal ConnectorInsulated Electrical Wire Connectors
 sealcrimpInsulated Electrical Wire Connector


Product Description


Working temperature

-55 degrees C~+125 degrees C

Final shrink temperature

>160 degrees C

Dielectric strength

1kv

Waterproof level

IP 67











Product Dimensions


specification



Packing & Shipping:

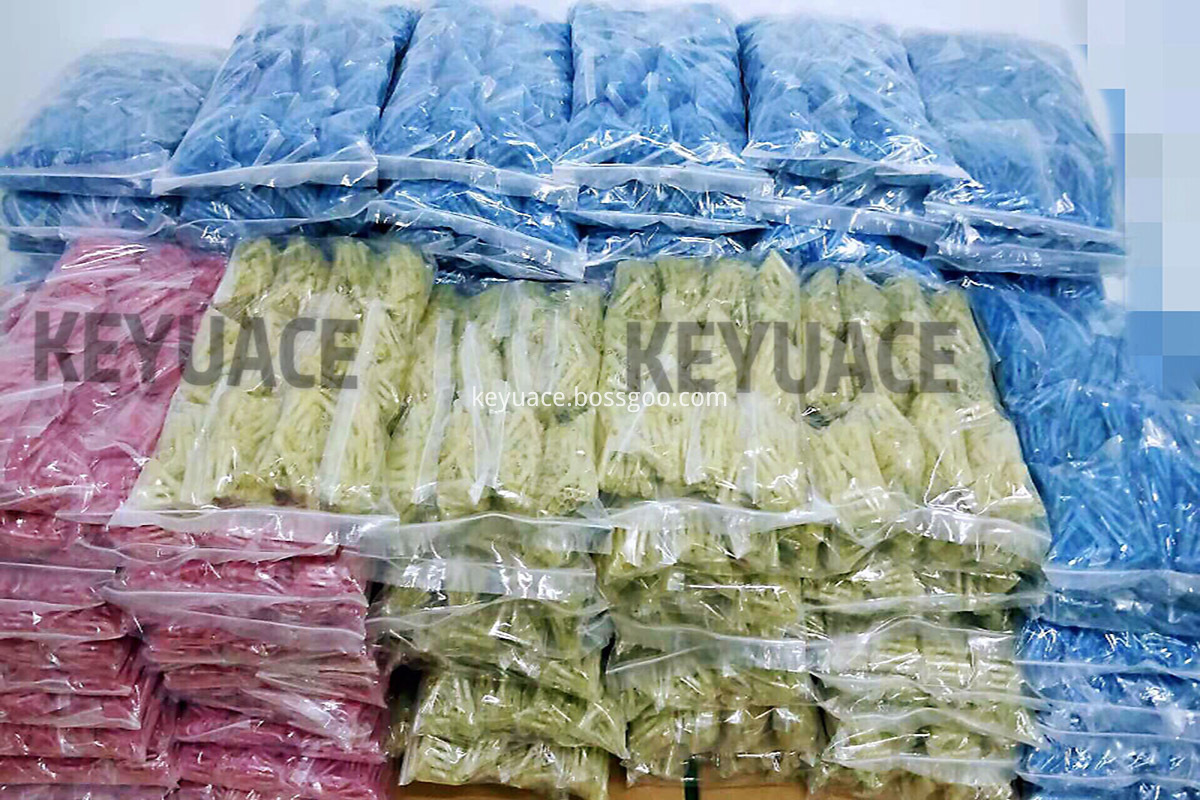

HEAT SHRINKABLE BUTT Terminals packing



Our Services

Excellent quality and reasonable price to provide.

- We do quotation within 2 days and welcome your any inquiry at any time.

- More details pelease call or email to us directly!

1.We are already have 3 factories located in SZ, abound of material and market resources, high quality, competitive price, best service.

2.As a professional manufacturer of Insulation Heat Shrinkable Terminal Sleeve for more than 10 years. our products are exported to USA, Europe country, Middle East , South America and so on.


3.Workflow: your idea →we make sample and send to you →you confirm and order →deposit →product →pay balance →shipment →After service


Electrical Terminals Waterproof Seal Assorted Wire Crimp Heat Shrink Butt Connectors KitCertificationFactory ShowCompany Logistics
