Silicone Coated Fire Protection Fiberglass Sleeving

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF,EXW,FCA
Min. Order: 1000 Meter
Delivery Time: 18 Days

Basic Info

Model No.: ZFR

Additional Info

Packaging: Standard&according to customer's required

Productivity: 1000000

Brand: KEYUACE

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000

Port: YanTian,Shenzhen

Product Description

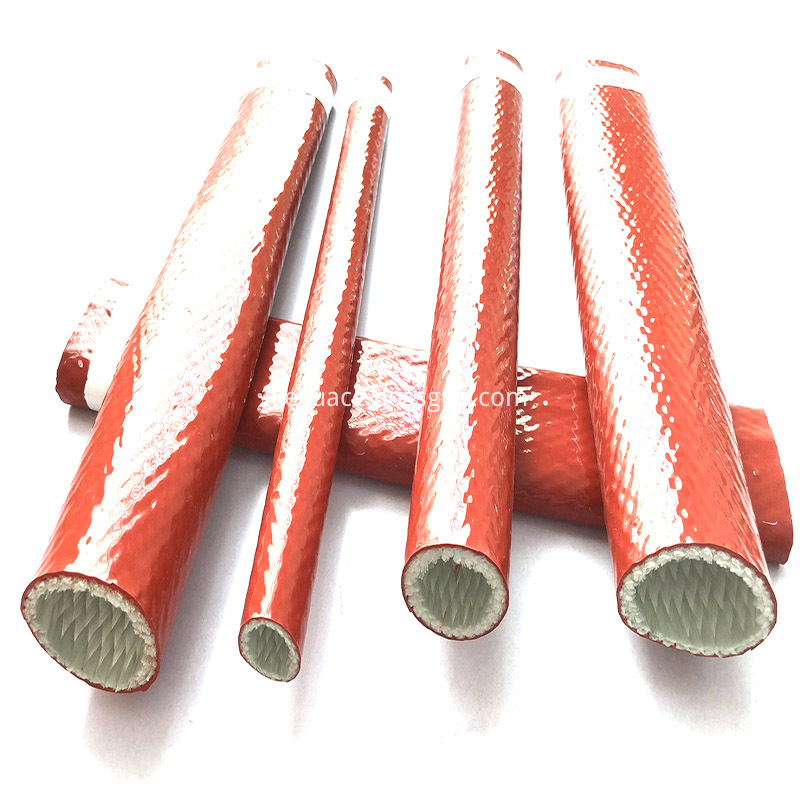

 Silicone Coated Fire Protection Fiberglass Sleeve



Product Description

ZFRS-Silicone Fiberglass Sleeve For Wire harness is made of non-alkali glass fiber or high bulked glass fiber woven with organic high

temperature resistant iron oxide red silicone by high temperature treatment process.



Feature & benefit:

1, Fireproof, flame resistant, heat insulation, heat preservation
2, Insulation, anti-aging
3, Anti-acid, anti-alkali
4, Can protect the covered from the melting metal splash and strong heat source.

Product application:

1, High temperature work environment: iron and steel plant, smelting plant, glassworks, rial transit, large transfer equipment.

2, Hydraulic hose, cable, flexible metal tubing, corrugated pipe and all kinds of pipeline for high temperature protection in all kinds of bad environment.


Size/inner diameter:

4.5mm-150mm(1/5"-6")

Colour:

Typically in iron oxide red and black,special colours accept customized.

Working temperature:

Continues working at -75°C -260°C,short time exposure to1690°C

Rate voltage:

7kv--25 kv

Characters:

High tempt. & flame resistant,insulation,anti-aging,avoiding splashing of the molten iron,abrasion resistant,water proof,oil proof,acid and alkali resistant.


Standard specification:


PART NO.

  INNER DIA.
(mm)

   WALL THICK(Single Side)
(mm)

Length
(m/roll)

ZFR06

6

1.5

20

ZFR08

8

1.6

20

ZFR10

10

1.8

20

ZFR13

13

1.9

20

ZFR15

15

2.1

20

ZFR20

20

2.4

20

ZFR22

22

2.5

20

ZFR25

25

2.6

20

ZFR30

30

2.9

20

ZFR32

32

3.0

20

ZFR35

35

3.1

20

ZFR38

38

3.2

20

ZFR40

40

3.4

20

ZFR45

45

3.4

20

ZFR50

50

3.6

20

ZFR55

55

3.7

20

ZFR60

60

3.8

20

ZFR65

65

3.8

20

ZFR70

70

4.0

20

ZFR75

75

4.1

20

ZFR80

80

4.3

15

ZFR85

85

4.3

15

ZFR90

90

4.5

15

ZFR95

95

4.5

15

ZFR100

100

4.6

15

ZFR105

105

4.7

10

ZFR110

110

4.7

10

ZFR115

115

4.7

10

ZFR120

120

4.8

10

ZFR125

125

4.8

10

ZFR130

130

5.0

10

ZFR140

140

5.2

10

ZFR150

150

5.2

10























































































Foreign standard:



 PART NO.

INNER DIA.

(inch)

WALL THICK(Single Side)(mm)

Length

(m/roll)

ZFR06

1/4

1.5

65

ZFR08

5/16

1.6

65

ZFR10

3/8

1.8

65

ZFR13

1/2

1.9

65

ZFR16

5/8

2.1

65

ZFR19

3/4

2.4

65

ZFR22

7/8

2.5

65

ZFR25

1

2.6

65

ZFR29

1 1/8

2.9

65

ZFR32

1 1/4

3.0

65

ZFR35

1 3/8

3.1

65

ZFR38

1 1/2

3.2

65

ZFR41

1 5/8

3.4

65

ZFR44

1 3/4

3.4

65

ZFR51

2

3.6

65

ZFR57

2 1/4

3.7

65

ZFR60

2 3/8

3.8

65

ZFR64

2 1/2

3.8

65

ZFR70

2 3/4

4.0

65

ZFR76

3

4.1

65

ZFR80

3 1/8

4.3

49

ZFR83

3 1/4

4.3

49

ZFR89

3 1/2

4.5

49

ZFR95

3 3/4

4.5
