Wire Splice Heat Shrink Terminal Connector

Unit Price: USD 0.0300 - 0.0400 / Piece/Pieces
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 5000 Piece/Pieces
Delivery Time: 18 Days

Basic Info

Model No.: HSCT

Type: Adapter; Splice

Material: Solder Terminal

Application: Power

Thickness: 0.75mm-1.0mm

AWG22-AWG10: AWG22-AWG10

Packing: 100PCS/Bag(See Product Pac

Plating: Sn Plating

Colors: Red, Yellow, Blue,White

Operating Tempature: -55℃---125℃

Fully Recovey Temp: 138℃

Additional Info

Packaging: Standard&according to customer's required

Productivity: 1000000

Brand: KEYUACE

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000

Port: YanTian,Shenzhen

Product Description

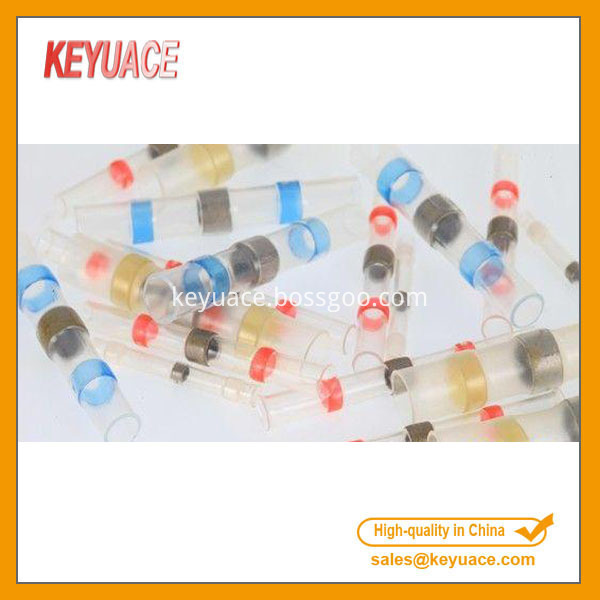

Wire Splice Heat Shrink Terminal Connector


Product Description

Heat Shrink Wire Crimp Connectors, Insulated Heat Shrink Butt Connectors is made of ABS material,  Butt Heat Shrink Wire Connectors Kit , Heat Shrink Solder Terminals the middle is double soldering tin ring design,

Heat Shrink Solder Terminals,Wire Splice heat shrink Terminal Connector its suitable for electric wire, wire connection, waterproofing, insulation and protection.


Product features


Heat Shrink Bullet Connectors, Insulated Solder Sleeve, Bulk Heat Shrink Connectors High Quality - Comply with all relevant European standards; Shrinking ratio: 2:1
Heat Shrink Wire Connector Kit Easy Operation - Transparent sleeve provides precise inspection when strip and insert wires inside.
More Effective Way - An easy one step connection of wires, insulated and sealed
No Slip Wire Contact - Tubing reduces in size and solder will melt and flow through the stripped wires, ensure strong holding --- your wire will never slip out of the connector. Can be ideal used in marine and automobile applications.


Operation Specification:


1, Min. Shrink temp.: 80 degrees C
2, Working temperature: -55℃~125 degrees C
3, Soldering tin start melt temperature:138 degrees C
4, Soldering tin complete melt temperature:160 degrees C

Up To Standard: Approvals
According with environmental protection

Application:

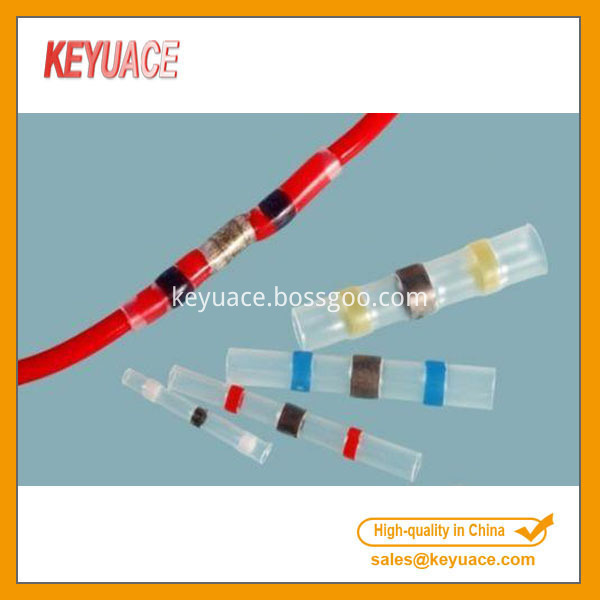

Insulated Solder Sleeve

Butt Heat Shrink Wire Connectors Kit

Heat Shrink Solder Connectors Application Jpg

Operation Instruction


Product Description

Working temperature

-55 degrees C~+125 degrees C

Final shrink temperature

>160 degrees C

Dielectric strength

1kv

Waterproof level

IP 67









Product Dimensions


Part Number

Product Size(mm)

Wire Dimensions(mm)(mm)

Standard color

Cable Size

A(min.)

L(min.)

B(min.)

B and C(max)

C(min)

A.W.G ,( 54156249, mm2 )

HSCT-R-01

1.7

26

1.0

1.7

0.76

White

26-24,( 54156250,0.25-0.34)

HSCT-R-02

2.7

40

1.4

2.7

1.2

Red

22-18,( 54156251,0.5-1.0)

HSCT-R-03

4.5

40

2.3

4.5

2.0

Blue

16-14,( 54156252,1.5-2.5)

HSCT-R-05

6.0

40

3.7

6.0

3.4

Yellow

12-10,( 54156253,4.0-6.0)
