FEP Teflon Heat Shrink Sleeving

Unit Price: USD 0.0230 - 0.0360 / Meter
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1000 Meter
Delivery Time: 18 Days

Basic Info

Model No.: KY-FEP

Type: Insulation Sleeve, Insulation Sleeving

Material: FEP Teflon

Application: Insulation Protection

Rated Voltage: 2500v

Tensile Strength: 12.4Mpa

Color: Transparent

Max. Shrink Temp: 260℃

Operating Tempe: -55℃~200℃

Heat Shrink Ratio: 1.7:1

Longitudinal Shrinkage: ≤8%

Additional Info

Packaging: Standard&according to customer's requirement

Productivity: 1000000

Brand: KEYUACE

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000

Port: YanTian,Shenzhen

Product Description


FEP Heat Shrink Sleeving

Product Description

Heat shrink sleeving, Teflon Heat Shrink Tubing is made of polyterafluoroethylene propylene(FEP).  Fep Tube, Transparent Heat Shrinkable Tube the products generally apply to:
1, Protect and insulate electronic components, resistance and  capacitor, and thermocouple from the high temperature oil environments.
2, Provide machinery protection for all kinds of metal wire. For example: protect, insulate and reinforce  the end of the wire, wiring, and terminal.

Transparent Heat Shrinkable Tube, Teflon Shrink Tubing it has non-sticking, heat-resistance, aging resistance, corrosive resistance, non-flammability and good electric property. ─LED & Fluorescent Lamp Protection Sleeves it can be solid adhesive for PTFE and also a good adhesive for laminating various materials. Teflon Fep Heat Shrink Sleeves, Teflon Cable Shrink Sleeve its working temperature is up to 200 and is an ideal material for circuit board and flat cable.


Application:

1, Cover the roller and idler wheel in machinery. ( Office machinery, papermaking machinery, printing and dyeing machinery, printing machinery, etc.)
2, Cover the rolling shaft of conveyor belt ( Non-stick oil )
3, Insulating sheath, insulate the motor rotor, water treatment\oil field and other magma sample preparation industries.

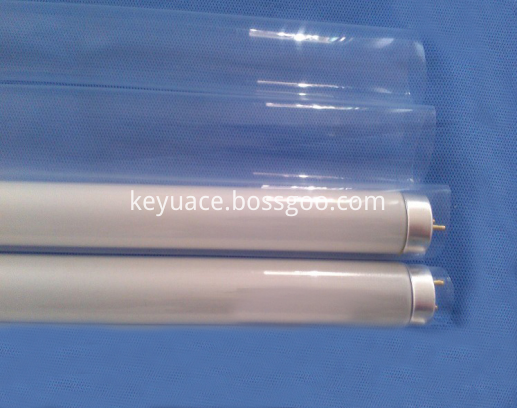

4, Apply to anti-explosion for the fluorescent light tube.

Fep Teflon Heat Shrink Tube



Features & Benefits:
1, Noninflammability, non-stick, environment protection without pollution, anti-UV
2, Anti chemical corrosion:
  It`s only resistant to fluorine and alkali metal in high environment and can`t work to all other strong and  thin inorganic acid,alkali and ester.
3, Electric insulation
 60HZ-60MHZ dielectric constant is 2.1 in high and low temperature.
4,Volume resistance>1018ΩM , surface resistance > 1013Ω , arc resistance>165 seconds, no electric leakage.
5, Low friction, dynamical friction coefficient: 0.2-0.3.
6, resistance to low and high temperature: -200--200 degrees C
7, Heat shrink ratio: 1.7:1 ,longitudinal shrinkage: ≤8%

Product Description



Product Property

Performance requirements

Test method

Test Date

Longitudinal shrinkage ratio

10%

ASTM D 2671

 8%

Tensile strength

11Mpa min

ASTM D 638

12.4MPa

Elongation at break

200% min

ASTM D 638

300%

Heat shock  300,4hrs

No cracking,

dripping or flowing

ASTM D 2671

Pass

Elongation after aging

(250 degrees C,  168hrs)

200% min

ASTM D 638

250%

Dielectric voltage withstand

2500V., 60sec,

no breakdown

ASTM D 2671

Pass


Product Dimensions



FEP Product dimension

The max. inner diameter only can be up to 200mm.
Color: transparent.
Pointed dimension is available according to customers' requirements.
