Product Description

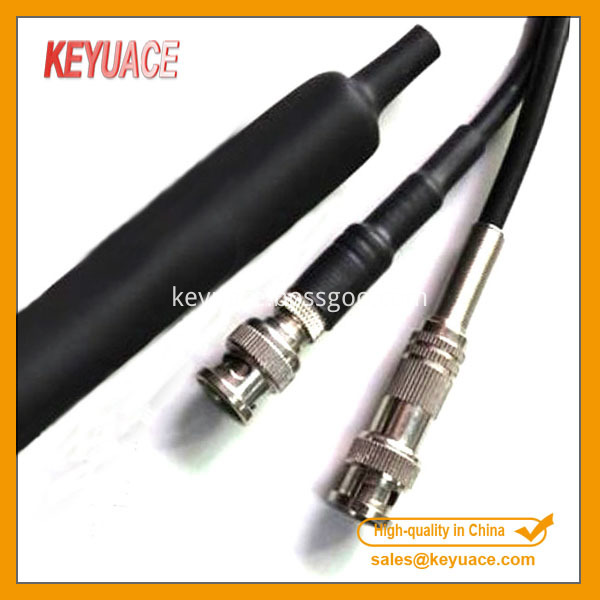

Military Standard High Flame Heat Shrink Tubing
Polyolefin Heavy Wall Heat Shrink Tubing, Heavy Duty Tubing high flame resistant polyolefin PE tube which is extruded with flame-resistant EVA hot melt adhesive, Construction Heavy Duty Tubing is made in accordance with military standard. High Flame Black Heat Shrink Tubing, Heavy Wall Heat Shrink Tubing it can suffer against mechanical strain,also has superior sealing capacity against water, corrosion, damp, etc. So High Temp Wire Insulation Sleeve, Flexible Heavy Duty Tubing it`s widely used in all kinds off wire harnesses, ship equipment wires, cables and metal pipe.
Features & Benefits:
1, Meet the military standard ASM-DTL-23053/4
2, Flame-resistant inner layer, anti-UV
3, Heat shrink ratio: 3:1, 4:1

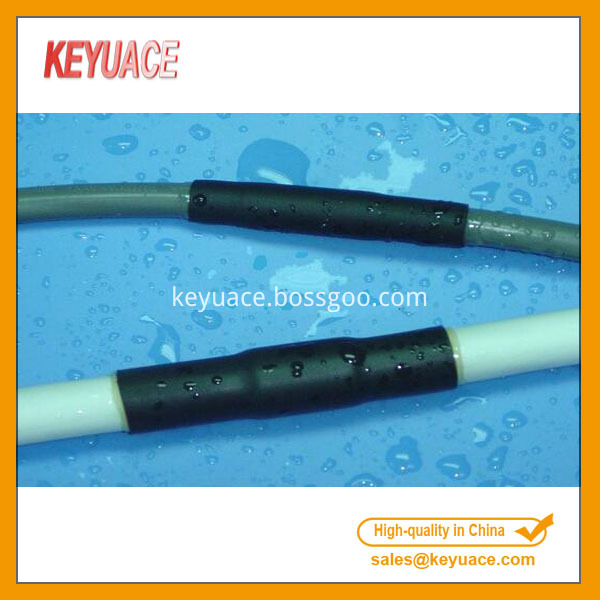

4, Waterproof, Damp-proof, anti-corrosion, prevent gas leakage
Operating Indexes:
1, First shrink temp.: 70 degrees C
2, Final shrink temp.: 125 degrees C
3, Working temp.:-45 degrees C~135 degrees C
Up to standard: Approvals
Meet military standard ASM-DTL-23053/4, UL224, 600V
|
Product Properties
|
Test Method
|
Test Date
|
|
Longitudinal shrinkage
|
ASTM D 2671
|
-8%~+8%
|
|
Tensile strength
|
ASTM D 2671
|
≥10.5MPa
|
|
Elongation at break
|
ASTM D 2671
|
≥300%
|
|
Tensile strength after aging
|
175℃,168hrs
|
≥8.5MPa
|
|
Elongation after aging
|
≥100%
|
|
Heat shock
|
ASTM D 2671
250℃,4hrs
|
PASS
|
|
Cold bend (-30℃, 1hrs)
|
ASTM D 2671
-45℃,4 hrs
|
No break
|
|
Breakdown strength
|
IEC 60243
|
≥15KV/mm
|
|
Corrosion
|
ASTM D 2671
|
Pass
|
|
Flammability
|
AMS-DTL-2305/5
|
Self-extinguish in 30 seconds
|
|
Volume resistance
|
IEC 60093
|
≥1014Ω.cm(min.)
|
|
Hot melt adhesive technology index
|
|
water absorption
|
95 ± 5℃
|
ASTM E 28
|
|
Softening point
|
< 0.5%
|
ASTM D 570
|
|
peel strength (PE)
|
≥120N/25mm
|
ASTM D 1000
|
|
peel strength (AI)
|
≥80N/25mm
|
ASTM D 1000
|
|
Nominal Size
|
As supplied
(mm)
|
After recovered ( mm )
|
Standard Packing
(M/Roll)
|
|
(mm)
|
(inch)
|
D (min)
Inside diameter
|
d (min)
Inside diameter
|
Wall Total thickness
WT:
|
t. Adhesivel thickness
|
|
HUS-R-3X
|
|
¢ 3.2
|
1/8
|
≥3.2
|
≤1.00
|
0.95 ± 0.15
|
0.35 ± 0.10
|
200
|
|
¢ 4.8
|
3/16
|
≥4.8
|
≤1.60
|
1.10 ± 0.15
|
0.40 ± 0.10
|
100
|
|
¢ 6.4
|
1/4
|
≥6.4
|
≤2.20
|
1.20 ± 0.15
|
0.45 ± 0.12
|
100
|
|
¢ 7.9
|
5/16
|
≥7.9
|
≤2.70
|
1.30 ± 0.15
|
0.50 ± 0.12
|
100
|
|
¢ 9.5
|
3/8
|
≥9.5
|
≤3.20
|
1.40 ± 0.15
|
0.50 ± 0.12
|
50
|
|
¢ 12.7
|
1/2
|
≥12.7
|
≤4.20
|
1.70 ± 0.15
|
0.50 ± 0.12
|
1.22
|
|
¢ 15.0
|
5/8
|
≥15.0
|
≤5.20
|
1.80 ± 0.15
|
0.55 ± 0.15
|
1.22
|
|
¢ 19.1
|
3/4
|
≥19.1
|
≤6.30
|
1.95 ± 0.15
|
0.55 ± 0.15
|
1.22
|
|
¢ 25.4
|
1
|
≥25.4
|
|
