Silicone Coated Braided Fiberglass Fire Sleeve

Unit Price: USD 0.2600 / Meter
Payment Type: L/C,T/T,D/P,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1000 Meter
Delivery Time: 18 Days

Basic Info

Model No.: ZFRS

Type: Insulation Sleeving

Material: Fiberglass

Application: High Temperature

Rated Voltage: 10kV

Operating Temp: -75~+550 Degree

Flammability: Self-Extinguishing

Certification: Flammability

Standard: UL1441/ VW-1

Size: Standard

Color: Red, Black, Etc.

Additional Info

Packaging: Standard&according to customer's required

Productivity: 1000000

Brand: KEYUACE

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000

Port: YanTian,Shenzhen

Product Description

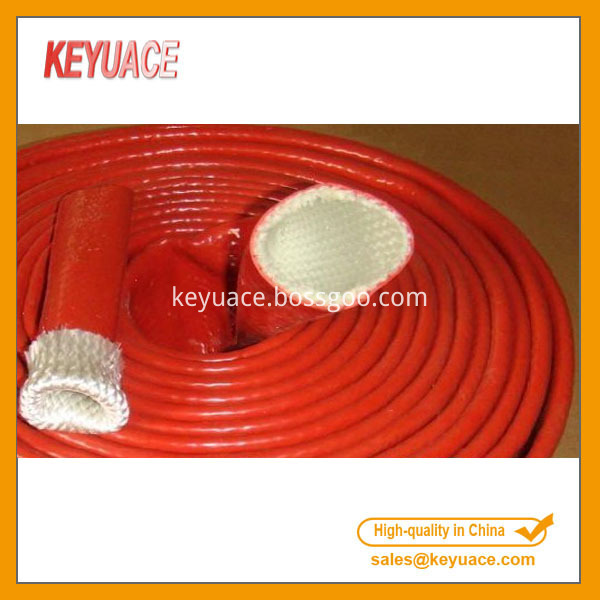

Silicone Coated Braided Fiberglass Fire Sleeve

Product Description

ZFRS fireproof sleeve is made of non-alkali glass fiber or high bulked glass fiber woven with organic high temperature resistant iron oxide red silicone by high temperature treatment process.

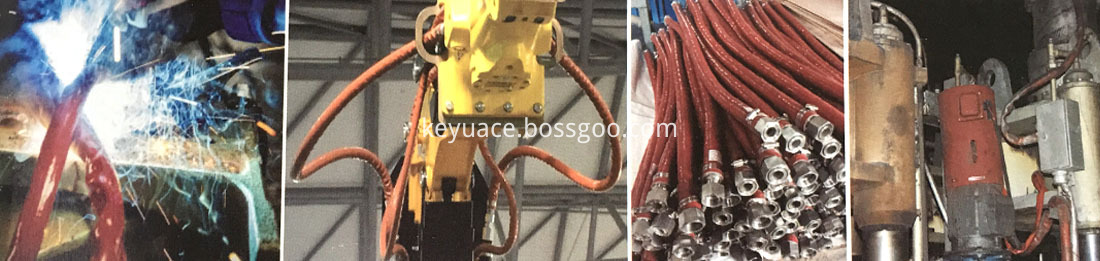

Fire sleeve (sometimes spelled Fire Sleeves or fire-sleeve) Heat Resistant Hose Sleeve, Fire Resistant Cable Sleeves is the perfect sleeve and jacket choice for protecting industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire and pyro exposure. The extra thick special formulation of silicone rubber on our fire sleeve sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. Fire Retardant Sleeves, Fire Sleeve For Hose also provides protection from ozone, UV and abrasion.
The standard color of fire sleeve is red-oxide, but custom colors such as blue, grey, black, yellow and green are available; great for identifying hose and cable use when the sleeve is installed. Fire Sleeves for Pipes, Fire Sleeves For Cables is the standard high-temperature and molten splash pyro protection jacket and sleeve for hose & cable.


Color
red oxide, blue, gray, gold, black, yellow,  pink, silver, purple and green
Material
Silicone, fiberglass
Continuous operating temp
500°F (260 degrees C)
Max short term exposure
3000°F (1650 degrees C)


Fire Retardant Sleeves


fireproof glass fiber application


Product Description

Main Features:
1) Self-extinguishing thick-walled insulating sleeve for excellent thermal protection
2) Sheds molten metal splash instantly and resists direct flame impingement
Lightweight and highly flexible composite protective sleeve with exceptional elasticity
3) Will not melt, burn, support combustion, or emit toxic smoke
4) Resistant to hydraulic fluids, fuels, lubricating oil, and water
5) Extends service life of assemblies and provides personnel protection

Product Dimensions

Inner Diameter

Thickness (mm)

Standard Package  (m/roll)

15

2.1

20

20

2.3

20

25

2.6

20

30

2.9

20

32

3.0

20

35

3.1

20

38

3.3

20

40

3.4

20

45

3.5

20

50

3.7

20

55

3.9

20

60

4.0

20

65

4.1

20

70

4.3

20

75

4.4

20

80

4.7

15

85

4.8

15

90

5.0

15

95

5.2

15

100

5.6

15
