Product Description

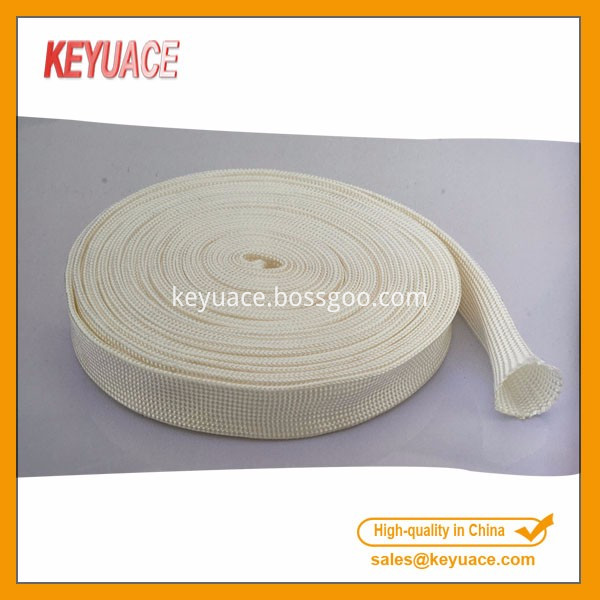

Heat Insulation High Silica Fiber Sleeve
Fiberglass Braided Sleeves is made by braided high silica oxygen fiber. White Cable Sleeve, Braided Electrical Sleeving, Braided Cable Sleeve it can work in the high temperature ( under 1000 degrees C), Braided Hose Pipe, Braided Polyester Sleeving and Black Braided Cable Sleeving is the necessary protective product of soft hose, oil tube, cable and other pipeline in the super-high temperature and open fire situation.
Application:
1, Metal melting melt filtration purification, high temperature gas dust collection .
2, liquid filtration, fire-proof materials( Fire proof suit, fire proof curtain, fire blanket).
3, high temperature burning materials, high temperature resistance, heat prevention.
4, sealing materials, high temperature resistance insulation materials.
5, welding heat insulation protection material, automobile, motorcycle noise reduction, etc.

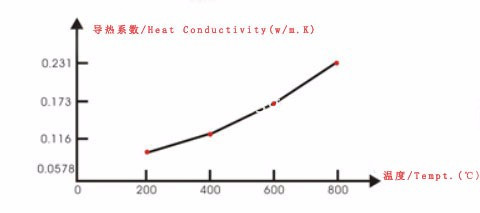

Thermal conductivity:
Product characters:
|
Size/inner diameter:
|
5mm-120mm(1/5"-4 3/4")
|
|
SiO2 content
|
≥96%
|
|
Colour:
|
White
|
|
Working temperature:
|
Continuous use at 1800°F (982°C), short term exposure up to 3000°F (1650°C).
|
|
Characters:
|
Smooth,soft,extreme high tempt. & flame resistant,insulation,avoiding splashing of the molten iron,alkali resistant.
|
Standard specification:
|
Model
|
Inner diameter
(mm)
|
Wall thickness
(mm)
|
Weight
(g/m)
|
|
GSF-5
|
5.0±1.0
|
0.7±0.2
|
12±5
|
|
GSF-8
|
8.0±1.6
|
1.6±0.2
|
18±5
|
|
GSF-10
|
10.0±2.0
|
1.6±0.2
|
50±5
|
|
GSF-15
|
15.0±3.0
|
1.6±0.2
|
65±10
|
|
GSF-20
|
20.0±4.0
|
1.6±0.2
|
85±10
|
|
GSF-25
|
25.0±5.0
|
1.6±0.2
|
90±10
|
|
GSF-30
|
30.0±6.0
|
1.6±0.2
|
125±13
|
|
GSF-35
|
35.0±7.0
|
1.6±0.2
|
140±14
|
|
GSF-40
|
40.0±10.0
|
1.6±0.2
|
170±17
|
|
GSF-50
|
50.0±10.0
|
1.6±0.2
|
180±20
|
|
GSF-64
|
64.0±10.0
|
1.6±0.2
|
255±26
|
|
GSF-76
|
76.0±10.0
|
1.6±0.2
|
305±31
|
|
GSF-80
|
80.0±10.0
|
1.6±0.2
|
320±32
|
|
GSF-86
|
86.0±10.0
|
1.6±0.2
|
345±35
|
|
GSF-90
|
90.0±10.0
|
1.6±0.2
|
360±36
|
|
GSF-96
|
96.0±10.0
|
1.6±0.2
|
380±38
|
|
GSF-120
|
120.0±10.0
|
1.6±0.2
|
480±48
|
